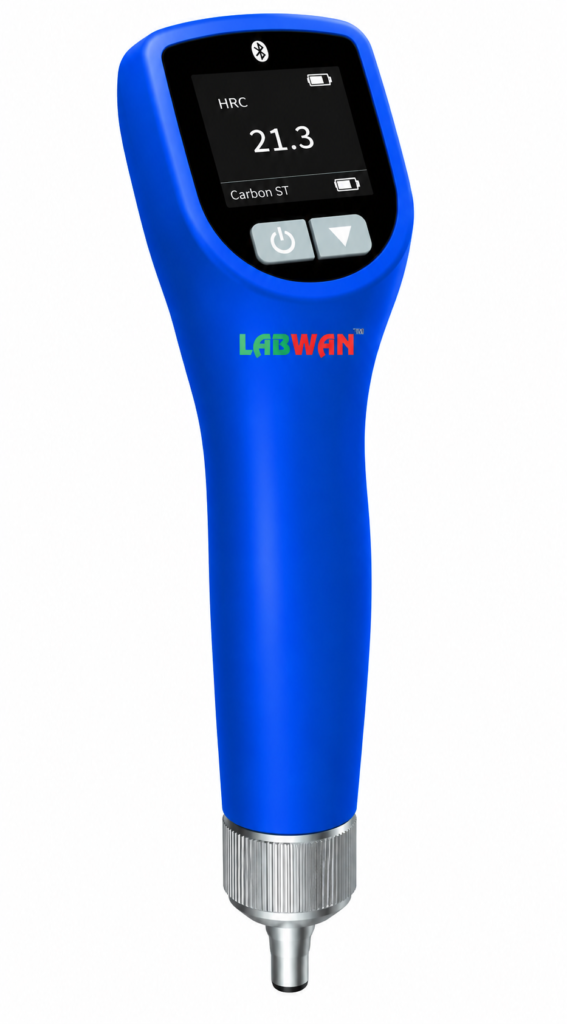

Ultrasonic Hardness Tester LWUT-132
Model LWUT-132
In Stock
LABWAN Ultrasonic Hardness Tester uses the UCI method for accurate, non-destructive hardness testing with minimal indentation. With 20N test force, two probes, multiple hardness scales and an IPS display, it is suitable for metals, thin and precision parts, coatings, gears, shafts, moulds, dies and heat-treated components
ISO 9001 Certified
Service & Support
Key Features
- Portable size, easy to carry
- Small indentation, non-destructive measurement
- Easy operation for measuring flat, small, or irregular parts
- High precision and good repeatability
- UCI method for non-destructive hardness testing
- Two probes for versatile applications
- 240 × 240 dot matrix IPS display
- Rechargeable lithium battery with over 5000 continuous measurements per full charge
Specifications
| Parameter Name | Specification |
|---|---|
| Product Name | Ultrasonic Hardness Tester |
| Model Name | LWUT-132 |
| Hardness Scales | HV, HRC, HRB, HRA, HS, HL, HB, HRE, HRF |
| Measurement Range | HV(50-1700), HL(170-960), HRC(20-70), HRB(13-100), HRA(60-85.8), HS(26.4-99.5), HB(30-651), HRE(20-70), HRF(60-100) |
| Resolution | 1HV, 0.1HRC |
| Accuracy | ±4%H+10HV, ±2.5HRC (Probe fixture stand test, H as the standard value) |
| Repeatability | 3%H+8HV, 2HRC (Probe fixture stand test, H as the standard value) |
| Test Force | 20N |
| Display | 240 × 240 dot matrix IPS |
| Power Supply | Rechargeable lithium battery 3.7V@1000mAh, full charge for over 5000 continuous measurements |
| Charging Port | USB(Type-C) |
| Size | 185×43×45 mm |
| Weight | 245 g |
| Working Temperature Range | -10~50°C, 0~85% RH (no condensation) |
| Storage Temperature Range | -10~60°C, 0~85% RH (no condensation) |
| Supply Voltage | DC5V |
| Operating Current | 60mA |
