Centrifuges

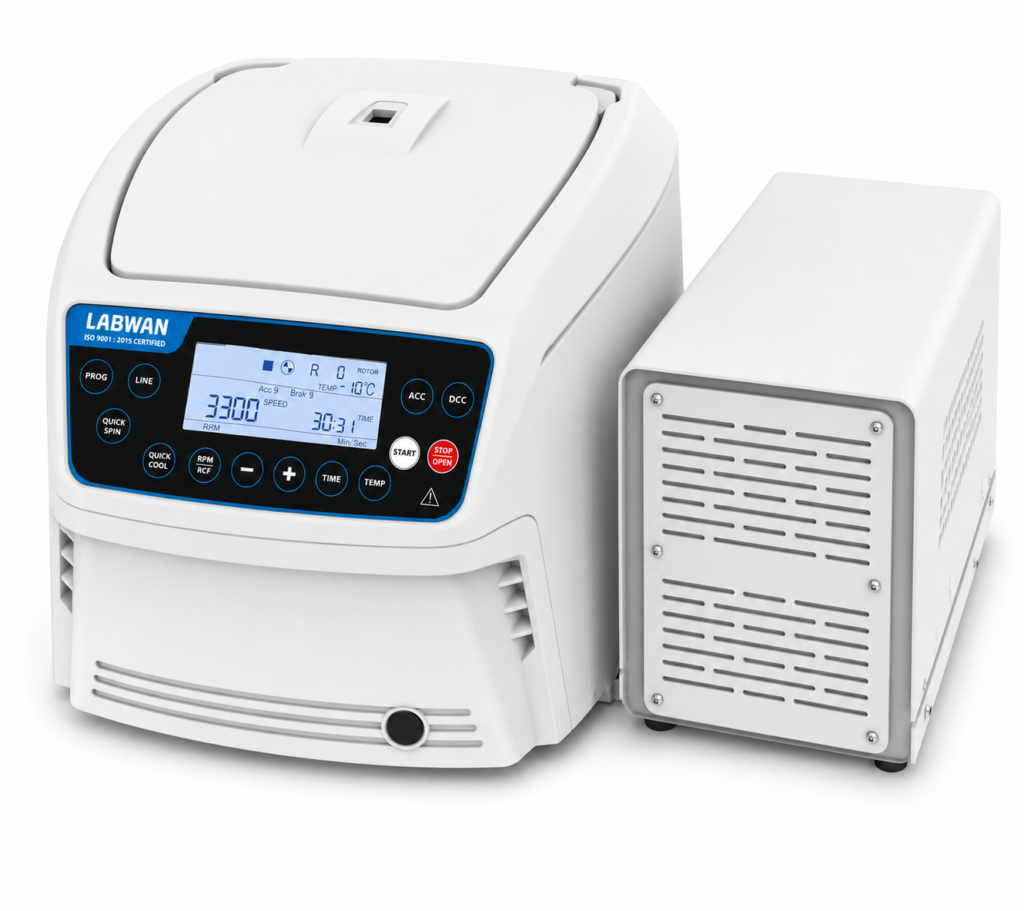

Refrigerated Laboratory Centrifuge LC-4500R
Model LC-4500R
In Stock
Refrigerated versatile laboratory centrifuge with brushless DC motor, microprocessor control, large back-lit LCD display, variable speed from 500 to 4500 RPM and refrigeration temperature up to -10°C. It supports different work protocols through fixed-angle and swing-out rotor options
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Brushless DC motor for maintenance free long life
- Microprocessor controlled enables digital variable speed and time setting with last run memory function
- Max capacity 4 x 100 ml delivers up to 4500 RPM
- Single equipment for different work protocols with appropriate choice of rotors
- Adjustable refrigeration temperature up to -10°C
- Large back-lit LCD display for easy setting and readability across multiple parameters
- Adjustable selection from 1 to 9 Ramp & 1 to 11 Brake
- User programmable - user can set up to 99 programs of 4 lines each
- Separate refrigeration unit for easy maintenance
- Wide range of autoclavable rotors
- Drainage line to remove accumulated condensed water
- All rotors are with positional labeling, rotor cat-code, rotor expiry date, RPM/RCF(speed), rotor capacity
- CE Certified
Specifications
| Parameter | Value |
|---|---|
| Rotor Capacity (Max) | 4 x 100 ml (fixed & swing out) |
| Max RPM / RCF (xg) | 4500 RPM / 3485 x g (g varies as per rotor) |
| Motor Type | Brushless DC motor |
| Refrigeration Temperature | Up to -10°C |
| Speed Setting | 500 to 4500 RPM |
| Time Setting | 30 secs to 999 mins & Infinite mode |
| Lid Lock Safety & Imbalance Detection | Yes |
| Dimension (L x W x H) | 705 x 585 x 330 mm |
| Weight | <55 kgs |
| Adjustable Ramp & Brake | Selection from 1 to 9 Ramp & 1 to 11 Brake |
| Display | Large back-lit LCD display |
| Rotors (not included) | Multiple rotor options (swing out and fixed angle) |
| Voltage / Consumption | 230V / 690W |
| ROTORS (SWING OUT) | |
| LC01-L400-140 | 32 x 6 ml - 3164 x g |
| LC01-L30-125 | 16 x 15 ml - 3485 x g |
| LC01-L30-129 | 4 x 50 ml - 3485 x g |
| LC01-L30-130 | 4 x 100 ml - 3164 x g |
| LC01-L400-124 | 2 Micro plates - 2355 x g |
| ROTORS (FIXED ANGLE) | |
| LC01-L30-131 | 16 x 15 ml - 3144 x g |
| LC01-L30-135 | 4 x 50 ml - 2644 x g |
| LC01-L30-136 | 4 x 100 ml - 2599 x g |
| LC01-L30-137 | 24 x 15 ml - 2854 x g |
