Laboratory Equipment
LABWAN Oil-Free Vacuum Pump
Model LW-VP25
In Stock

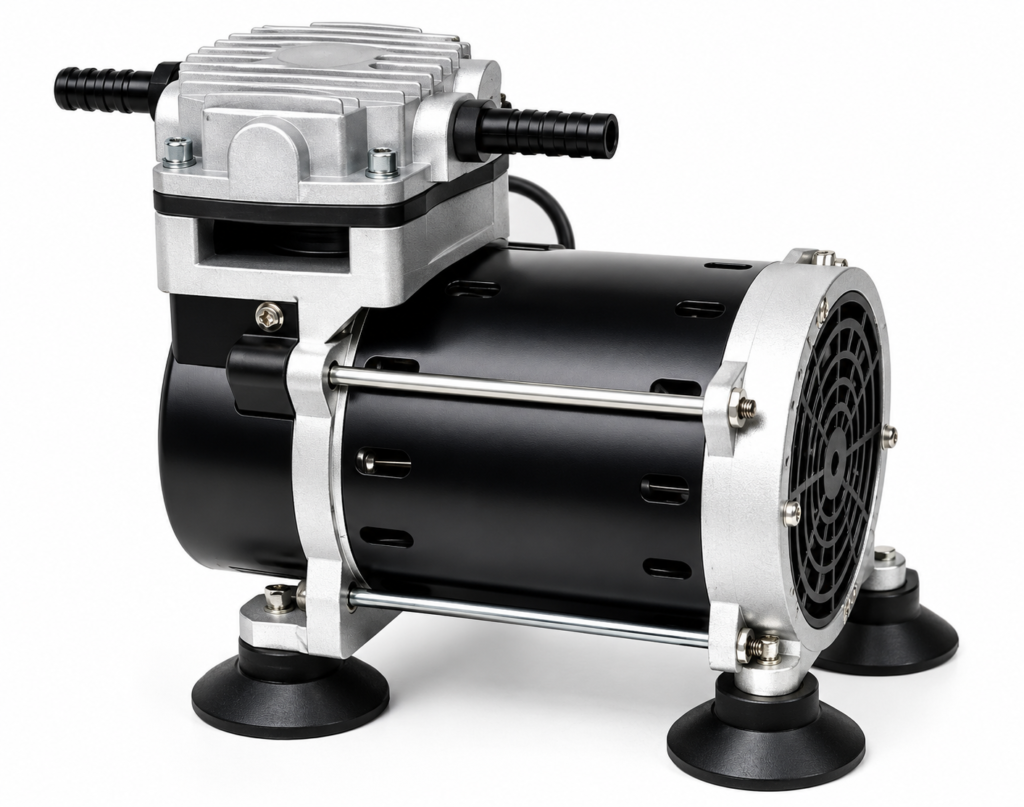

The LABWAN Oil-Free Vacuum Pump is a compact and lightweight piston-driven vacuum pump designed for clean, reliable and low-maintenance operation, with a maximum flow rate of 25 L/min, maximum vacuum of 500 mbar and motor rotation of 1450 RPM. Its oil-free design prevents oil contamination and supports applications including liquid filtration, microbiological detection, suspended solids measurement, vacuum drying and vacuum extraction.
ISO 9001 Certified
Service & Support
Key Features
- Oil-Free Piston Operation
- Compact & Lightweight Design
- Clean & Maintenance-Free Operation
- No Oil Contamination
- Air Inlet Filter Cartridge for particle and moisture filtration
- Adjustable Vacuum Regulator
- Built-In Thermal Protection with automatic shutdown during overheating
- Automatic Restart after the motor temperature returns to a safe level
- Safe, Reliable & Convenient Operation
Specifications
| Parameter | Value |
|---|---|
| Product Name | Vacuum Pump - Oil Free |
| Model | LW-VP25 |
| Power (V / Hz) | 220 / 50 |
| Max. power (W) | 30 |
| Max. current (A) | 0.3 |
| Stage | 1 |
| Max. vacuum (mbar) | 500 |
| Power | 1/20 Hp |
| Max. flow rate (L/min) | 25 |
| Motor rotation (RPM) | 1450 |
| Port thread (mm) | 8 mm |
| Dimension W x D x H (mm) | 100 x 90 x 150 |
| Weight (kg) | 2.2 |
| Noise level (dB) | 45 |
| Optional | Vacuum Controller, Filter & Vacuum Gauge Set (At Extra Cost) |
