Laboratory Equipment

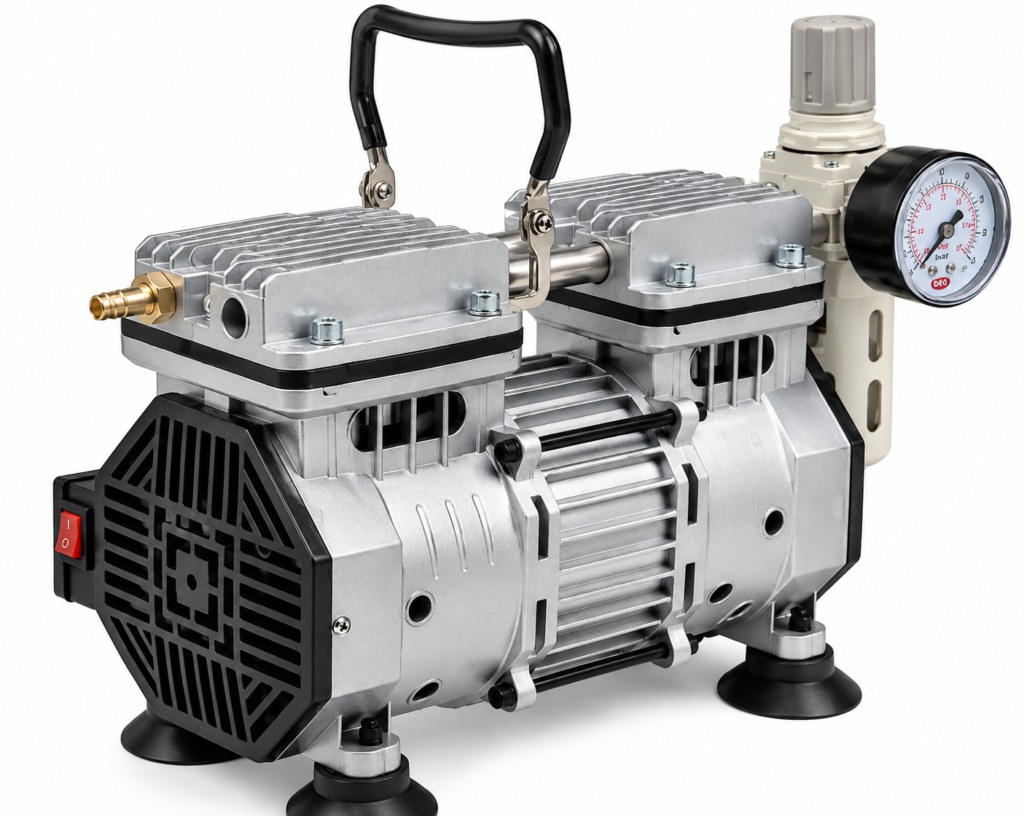

LABWN Oil-Free Vacuum Pump
Model LW-VP120
In Stock
he LABWAN Oil-Free Vacuum Pump is a compact, two-stage piston pump offering a maximum flow rate of 120 L/min and maximum vacuum of 100 mbar (-710 mmHg). With 1 HP power and oil-free operation, it is suitable for liquid filtration, microbiological detection, suspended solids measurement, vacuum drying and vacuum extraction. It features an air inlet filter, vacuum regulator and built-in thermal protection.
ISO 9001 Certified
Service & Support
Key Features
- Oil-Free Piston Operation
- Compact & Lightweight Design
- Clean & Maintenance-Free Operation
- No Oil Contamination
- Air Inlet Filter Cartridge for effective particle and moisture filtration
- Adjustable Vacuum Regulator for convenient vacuum control
- Built-In Thermal Protection for automatic shutdown during overheating
- Automatic Restart after the motor temperature returns to a safe level
- Reliable, Safe & Convenient Operation
Specifications
| Parameter | Value |
|---|---|
| Product Name | Vacuum Pump - Oil Free |
| Model | LW-VP100 |
| Power (V / Hz) | 220 / 50 |
| Max. power (W) | 120 / 1 HP |
| Max. current (A) | 0.5 |
| Stage | 2 |
| Max. vacuum (mbar) | 100 (-710 mmhg) |
| Power | 1 Hp |
| Max. flow rate (L/min) | 120 |
| Motor rotation (RPM) | 1450 |
| Port thread (mm) | 1/4 NPT |
| Dimension W x D x H (mm) | 250x 180x150 |
| Weight (kg) | 10 |
| Noise level (dB) | 45 |
| Including | Vacuum Controller, Filter & Vacuum Gauge Set (At Extra Cost) |
