Laboratory Equipment
LABWAN Oil-Free Vacuum Pump
Model LW-VP50
In Stock

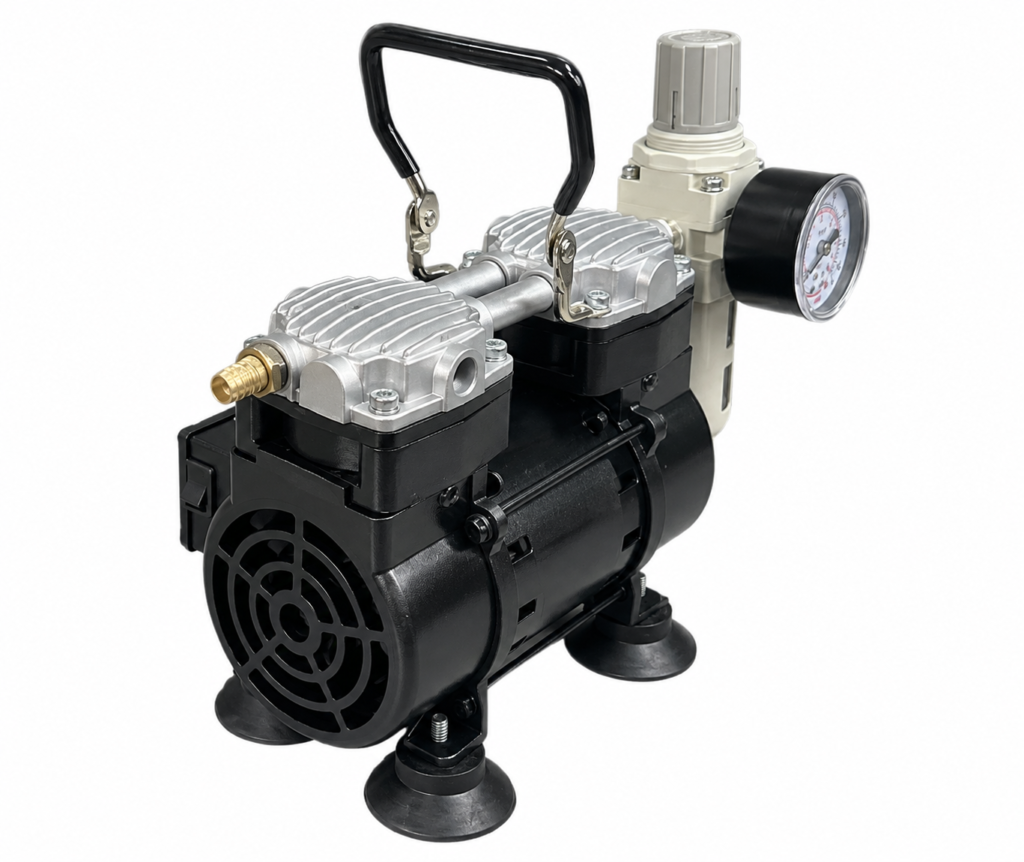

The LABWAN Oil-Free Vacuum Pump is a compact, lightweight, two-stage piston-driven pump designed for clean, reliable and low-maintenance operation. It provides a maximum flow rate of 50 L/min and maximum vacuum of 100 mbar (-710 mmHg) at 1450 RPM, with a 60 W motor and 45 dB noise level. The system includes a vacuum controller, filter and vacuum gauge set for vacuum control and monitoring.
ISO 9001 Certified
Service & Support
Key Features
- Oil-Free Piston Operation
- Compact & Lightweight Design
- Clean & Maintenance-Free Operation
- No Oil Contamination
- Air Inlet Filter Cartridge for effective particle and moisture filtration
- Adjustable Vacuum Regulator for convenient vacuum control
- Built-In Thermal Protection for automatic shutdown during overheating
- Automatic Restart after the motor temperature returns to a safe level
- Reliable, Safe & Convenient Operation
Specifications
| Parameter | Value |
|---|---|
| Product Name | Vacuum Pump - Oil Free |
| Model | LW-VP50 |
| Power (V / Hz) | 220 / 50 |
| Max. power (W) | 60 |
| Max. current (A) | 0.3 |
| Stage | 2 |
| Max. vacuum (mbar) | 100 (-710 mmhg) |
| Power | ¼ HP |
| Max. flow rate (L/min) | 50 |
| Motor rotation (RPM) | 1450 |
| Port thread (mm) | 10 mm |
| Dimension W x D x H (mm) | 180X150X85 |
| Weight (kg) | 4.4 |
| Noise level (dB) | 45 |
| Including | Vacuum Controller, Filter & Vacuum Gauge Set (At Extra Cost) |
