Spectrophotometer

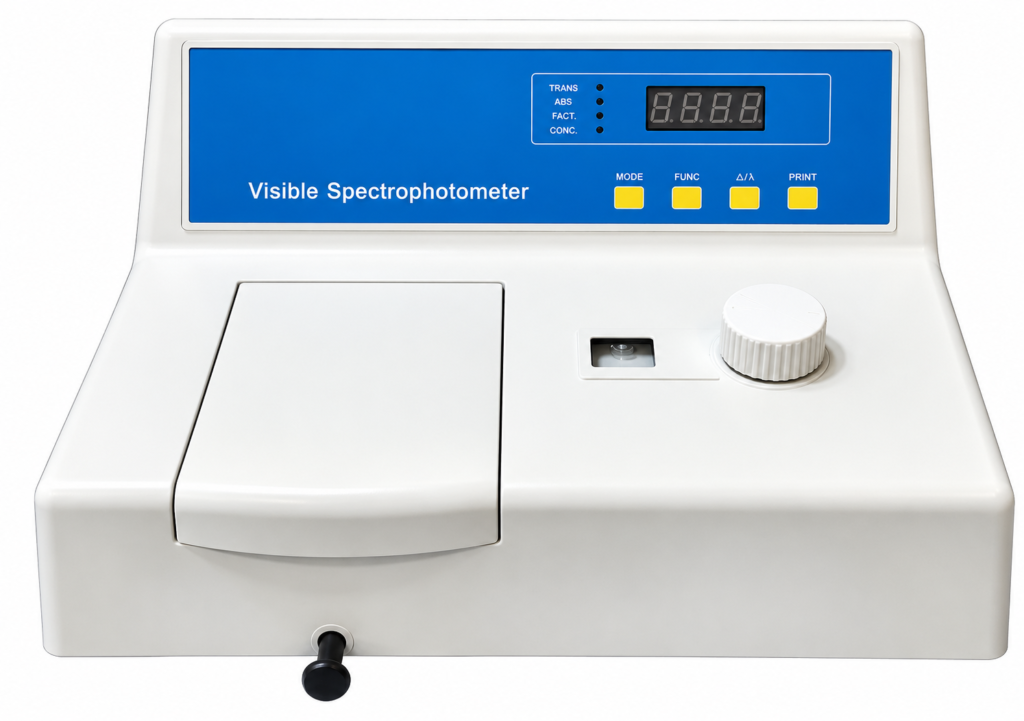

Microprocessor Single Beam Visible Spectrophotometer with Software LW-SBVS-721
Model LW-SBVS-721
In Stock
The Microprocessor Single Beam Visible Spectrophotometer is designed for laboratory analysis, featuring a wavelength range of 320–1000 nm, 2 nm bandwidth, and a tungsten halogen lamp (20W/12V). It offers ±2 nm wavelength accuracy, reliable photometric performance, and RS232 serial and parallel interfaces for data connectivity.
ISO 9001 Certified
Service & Support
Key Features
- Microprocessor-based single beam visible spectrophotometer.
- Wavelength range: 320–1000 nm.
- Wavelength accuracy: ±2 nm.
- Bandwidth: 2 nm.
- Tungsten halogen lamp (20W/12V).
- Reliable photometric performance.
- RS232 serial and parallel interfaces.
- Compatible with software for data analysis.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Microprocessor Single Beam Visible Spectrophotometer with Software |
| Model name | LW-SBVS-12 |
| Wavelength Range | 320-1000nm |
| Light Source Lamp | Tungsten Halogen Lamp 20W/12V |
| Wavelength Accuracy | ±2 nm |
| Wavelength Reproducibility | 1 nm |
| Band Width | 2 nm |
| Photometric Accuracy | ±0.5%(T) |
| Photometric Reproducibility | 0.2%(T) |
| Stray Light | ±0.2%(T) |
| Noise | ±0.2%(T) |
| Size | (L*W*H) Main Unit : 370*320*190mm, Carton : 450*420*280mm |
| Power Requirement | 220V/110V±10% 50/60 Hz |
| Interface | RS232 serial & parallel interface |
