Spectrophotometer

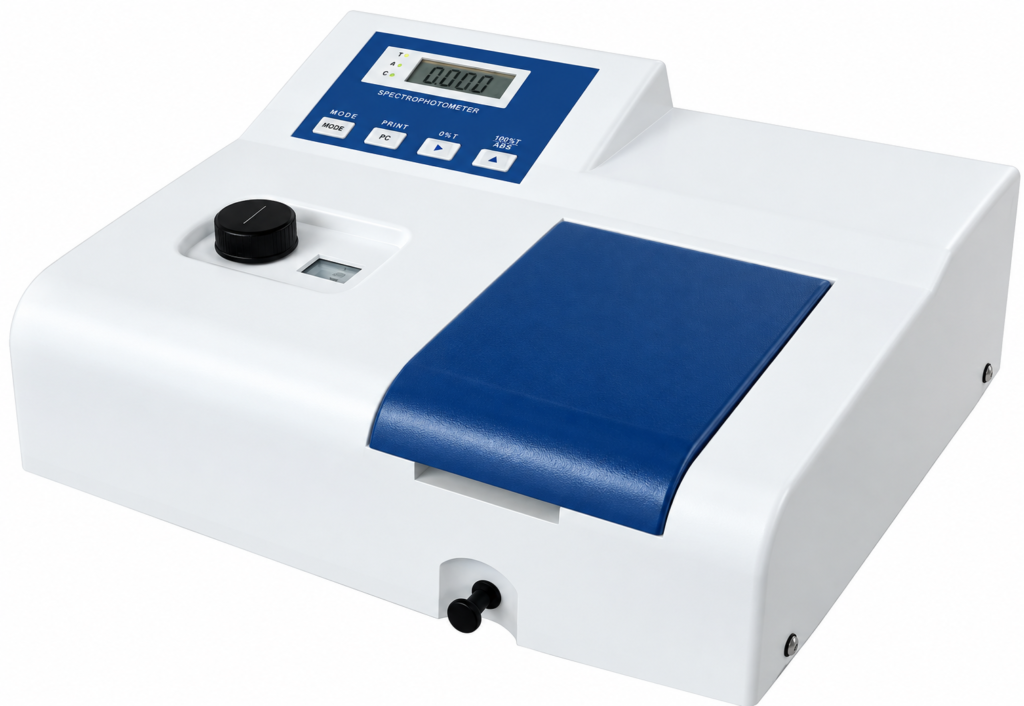

Microprocessor Single Beam Visible Spectrophotometer With Software LW-SBVS-10
Model LW-SBVS-10
In Stock
write a short des for htis
The Single Beam Spectrophotometer features a C-T monochromator with a holographic grating of 1200 lines/mm, a wavelength range of 320–1020 nm, and a spectral bandwidth of 2 nm. It offers ±2 nm wavelength accuracy, a silicon photodiode detector, a tungsten lamp, four-digit LCD display, direct concentration readout, and an RS-232C port for data connectivity.
ISO 9001 Certified
Service & Support
Key Features
- The Monochromator with a holographic flashing grating is used.
- It has the advantage of high wavelength precision, good monochromatic and low stray light.
- A sample compartment is equipped with 50 mm cell holder.
- Direct concentration read-out and concentration factor setting function.
- Equipped with RS232 Port.
Specifications
| Parameter | Specification |
|---|---|
| Product name | Microprocessor Single Beam Visible Spectrophotometer With Software |
| Model name | LW-SBVS-10 |
| Optical System | C-T Single Beam, Grating 1200lines/mm |
| Wavelength Range | 320-1020nm |
| Spectral Bandwidth | 2nm |
| Wavelength Interval | 1nm |
| Wavelength Accuracy | ±2nm |
| Wavelength Repeatability | ≤1nm |
| Photometric Accuracy | ±1%T |
| Photometric Repeatability | 0.5%T |
| Photometric Range | 0 -1.999A, 0-199.9%T |
| Stray Light | ≤0.3%T@340nm |
| Stability | ±0.004A/h @500nm |
| Display | 4 LCD |
| Photometric Mode | T,A,C |
| Detector | Si Photodiode |
| Light Source | Tungsten lamp |
| Power Requirement | AC ( 220V/50Hz ) |
| Dimensions | (W x D x H) 450 x 520 x 320mm |
| Weight | 10kg |
| Output | RS-232C Port |
