Spectrophotometer
LABWAN UV Vis Spectrophotometer LUV-100
Model LUV-100
In Stock

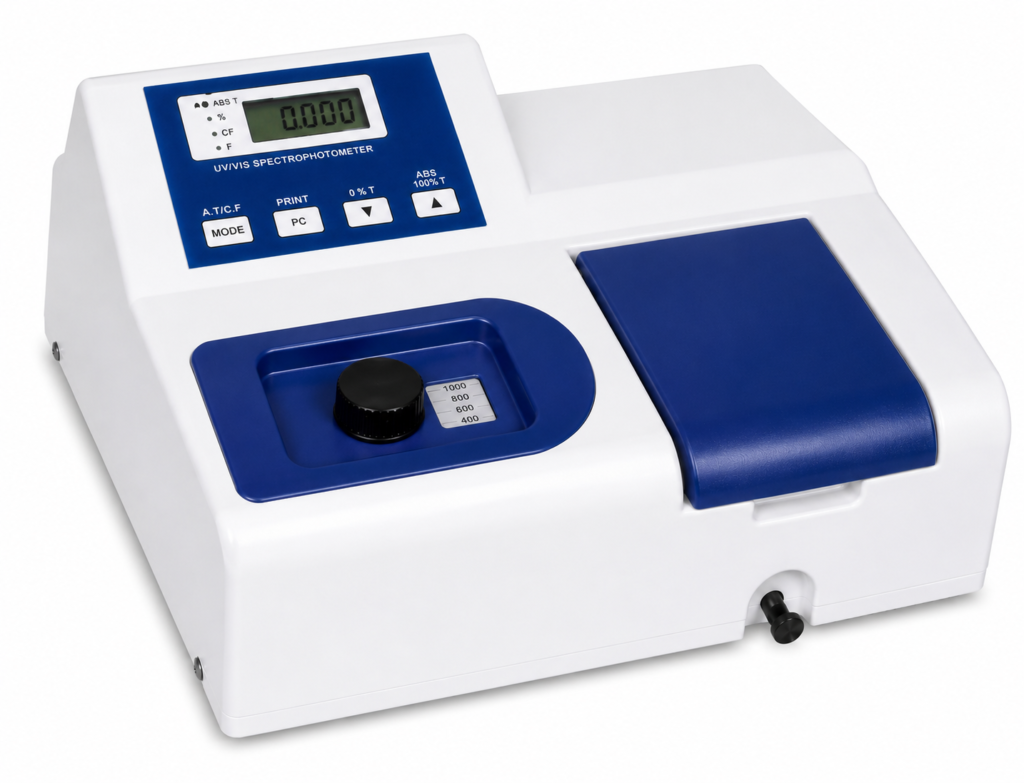

LABWAN LUV-100 UV Vis Spectrophotometer features a CT single-beam optical system with a 1200 lines/mm grating and a wavelength range of 195–1020 nm. It provides direct readout of Absorption (ABS), Transmittance (%T) and Concentration (C), with a silicon photodiode detector and Deuterium & Tungsten lamp.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- CT Single Beam Optical System
- Grating 1200 lines/mm
- Wavelength Range: 195–1020 nm
- Holographic Flashing Grating Monochromator
- 4 Digit LCD Display
- Direct Readout of ABS, %T & Concentration
- Concentration Setting Function
- Silicon Photodiode Detector
- Deuterium & Tungsten Lamp
- High Wavelength Precision
- Low Stray Light
Specifications
| Parameter | Value |
|---|---|
| Optical System | CT Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 195~1020 nm |
| Spectral Bandwidth | 5 nm |
| Wavelength Interval | 1 nm |
| Wavelength Accuracy | ± 2 nm |
| Wavelength Repeatability | 1 nm |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | 0-200%T |
| Stray Light | ≤0.3%T@340nm |
| Stability | ±0.002A/h @500nm |
| Display & Photometric Mode | 4 Digit LCD & Mode: T, A, C |
| Detector | Silicon Photodiode |
| Light Source | Deuterium & Tungsten Lamp |
| Power Supply | AC 220V / 50Hz |
| Dimensions & Weight | 450 × 520 × 320 mm & 12 kgs |
| Standard Accessories | Glass Cell 10mm; Quartz Cell 10mm; Power Cord; Instruction Manual |
