LABWAN Ultrasonic Thickness Gauge Through Coating LUTG-600
Model LUTG-600
In Stock

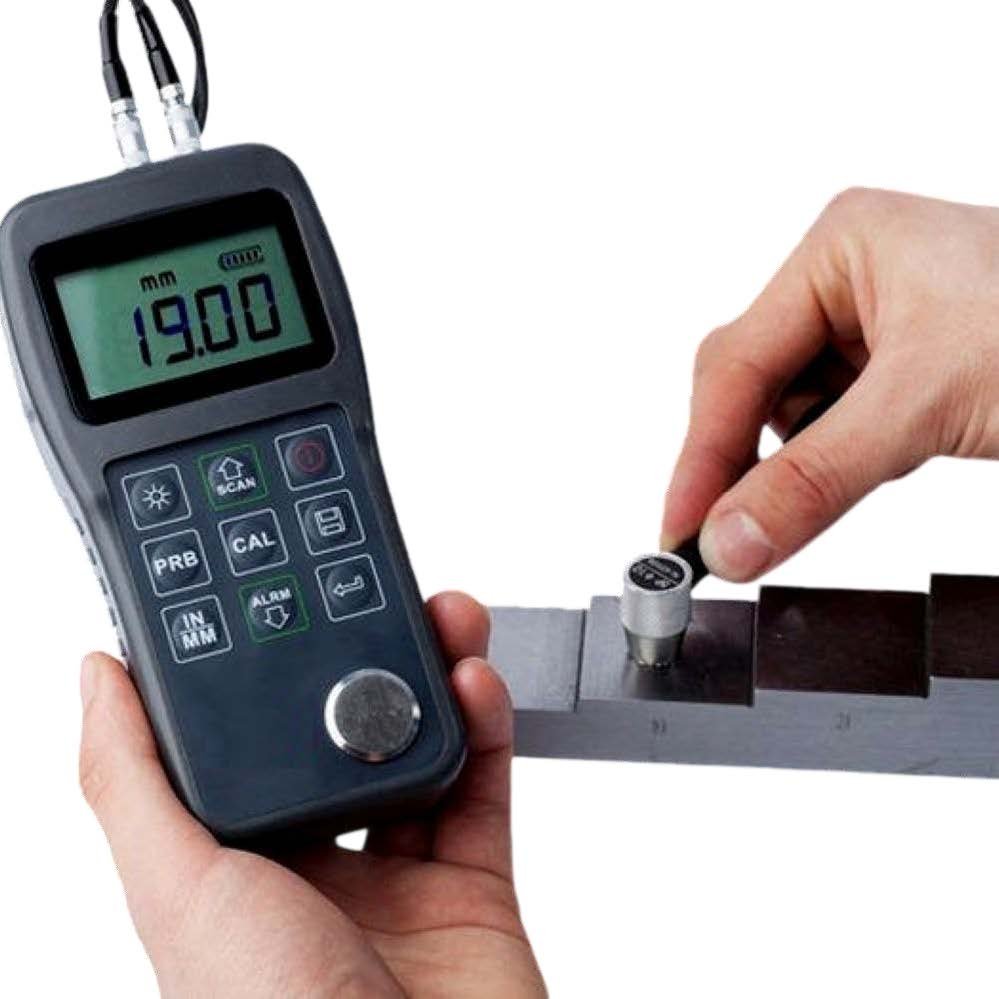

The LUTG-600 Through Coating Ultrasonic Thickness Gauge is a multi-mode precision instrument designed for accurate thickness measurement of coated and uncoated materials. It supports both Pulse-Echo and Echo-Echo measurement modes, allowing standard thickness measurement as well as thickness measurement through coatings without including the coating thickness. It is suitable for metals, plastics, ceramics, composites, epoxies, and glass.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Multi-mode operation: Pulse-Echo and Echo-Echo
- Suitable for metals, plastics, ceramics, composites, epoxies, and glass
- Multiple probe/transducer compatibility
- One-point and two-point calibration functions
- Single-point measurement mode and Scan mode
- Measurement speed: 7 readings/sec in single mode
- Measurement speed: 16 readings/sec in Scan mode
- Coupling status indicator
- Selectable Metric and Imperial units
- Battery capacity indicator
- Auto sleep and auto power-off function
- Optional PC software for memory data processing
- Suitable for through-coating thickness measurement
Specifications
| Specification | Value |
|---|---|
| Measurement Mode | Pulse-Echo & Echo-Echo |
| Range (Pulse-Echo) | 0.65–600 mm (in steel) |
| Range (Echo-Echo) | 3–30 mm (in steel) |
| Sound Velocity Range | 1000–9999 m/s |
| Resolution | 0.1 mm / 0.01 mm |
| Accuracy | ±0.5% of reading + 0.01 mm |
| Memory | 20 files × 99 values |
| Display | LCD |
| Measurement Speed | 7 readings/sec (single), 16 readings/sec (scan) |
| Power Supply | 2 × 1.5 V AA batteries |
| Battery Life | Up to 100 hours |
| Dimensions | 150 × 74 × 32 mm |
| Weight | 245 g |
| OPERATING CONDITIONS | |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Humidity | ≤90% |
| Environment | Free from vibration, strong magnetic field, corrosive materials, and heavy dust |
| STANDARD ACCESSORIES | |
| P5EE 5 MHz Probe | Yes |
| 2 × AA Alkaline Batteries | Yes |
| Couplant | Yes |
| User Manual | Yes |
| Carrying Case | Yes |
| OPTIONAL ACCESSORIES | |
| 2 MHz Probe | |
| 5 MHz Probe | |
| 7 MHz Probe | |
| 5 MHz High Temperature Probe | |
| Software and Communication Cable | |
| TRANSDUCER SELECTION | |
| P5EE | Frequency: 5 MHz • Diameter: 12 mm • Measuring Range: Echo-Echo Mode: 3–30 mm • Lower Limit: Ø20 mm × 3.0 mm • Description: Through coating measurement |
| N05 | Frequency: 5 MHz • Diameter: 10 mm • Measuring Range: 1–600 mm (in steel) • Lower Limit: Ø20 mm × 3.0 mm • Description: Normal thickness measurement |
| N07 (90°) | Frequency: 7 MHz • Diameter: 6 mm • Measuring Range: 0.65–200 mm (in steel) • Lower Limit: Ø15 mm × 2.0 mm • Description: Thin pipe / small curvature measurement |
| Standard Accessories | P5EE 5 MHz Probe , 2 × AA Alkaline Batteries, Couplant, User Manual , Carrying Case |
| Optional Accessories | 2 MHz Probe , 5 MHz Probe, 7 MHz Probe , 5 MHz High Temperature Probe , Software and Communication Cable |
