Turbidity Meter

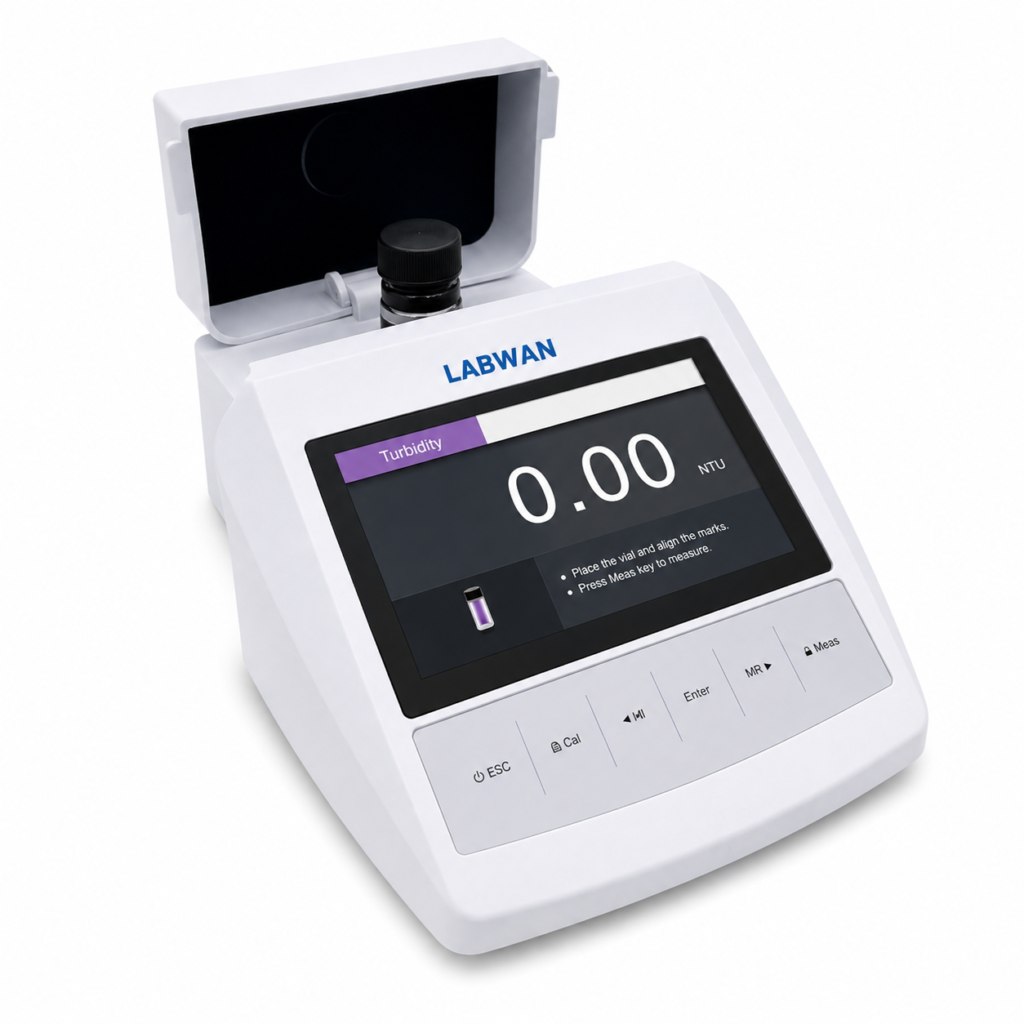

LABWAN Turbidity Meter with TSS Measuring Mode LTB-200
Model LTB-200
In Stock
LABWAN LTB-200 Turbidity Meter with TSS measuring mode is designed for turbidity and total suspended solids measurement. It supports 2 to 7-point calibration, four selectable turbidity units, TSS conversion through a user-defined conversion factor, auto-read stable measurement, password-protected calibration and 200-data memory with USB output.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- TSS Measuring Mode
- 2 to 7 Points Calibration
- Formazin Standard Calibration
- Selectable Turbidity Units: NTU, FNU, EBC & ASBC
- TSS Conversion Factor
- Auto-Read Function
- Setup Menu for Date, Time, Measurement Mode & Resolution
- Password Protection
- Infrared-Emitting Diode (850 nm)
- Silicon Photodiode Detector
- 200 Data Sets Memory
- USB Data Output
- 4.5-inch TFT LCD Display
Specifications
| Parameter | Value |
|---|---|
| Turbidity Range | 0~2000 NTU, 0~500 EBC, 0~9999 ASBC |
| Turbidity Resolution | 0.01 (0~99NTU), 0.1(100~999NTU), 1(1000~2000NTU) |
| Turbidity Accuracy | ±2% of reading (0~500NTU), ±3% of reading (501~2000NTU) |
| Calibration Points | 2 to 7 points |
| Calibration Standards | 10, 200, 500, 1000, 1500, 2000 NTU |
| TSS Range | Depending on the TSS conversion factor |
| TSS Accuracy | 3% of reading |
| Light Source | Infrared-emitting diode (850nm) |
| Detector | Silicon Photodiode |
| Stray Light | < 0.02 NTU |
| Sample Vial | 60(H) x 25(dia) mm |
| Memory & Data Output | 200 data sets & USB Data output |
| Operating Temperature | 0~50°C |
| Display | 4.5 inches TFT LCD |
| Power Supply | DC12V Power Adapter |
| Dimensions & Weight | 250 x 177 x 96 mm & 1.2 kg |
| Standard Accessories | Adapter; Sample Vial; Instruction Manual; Standard Solution |
