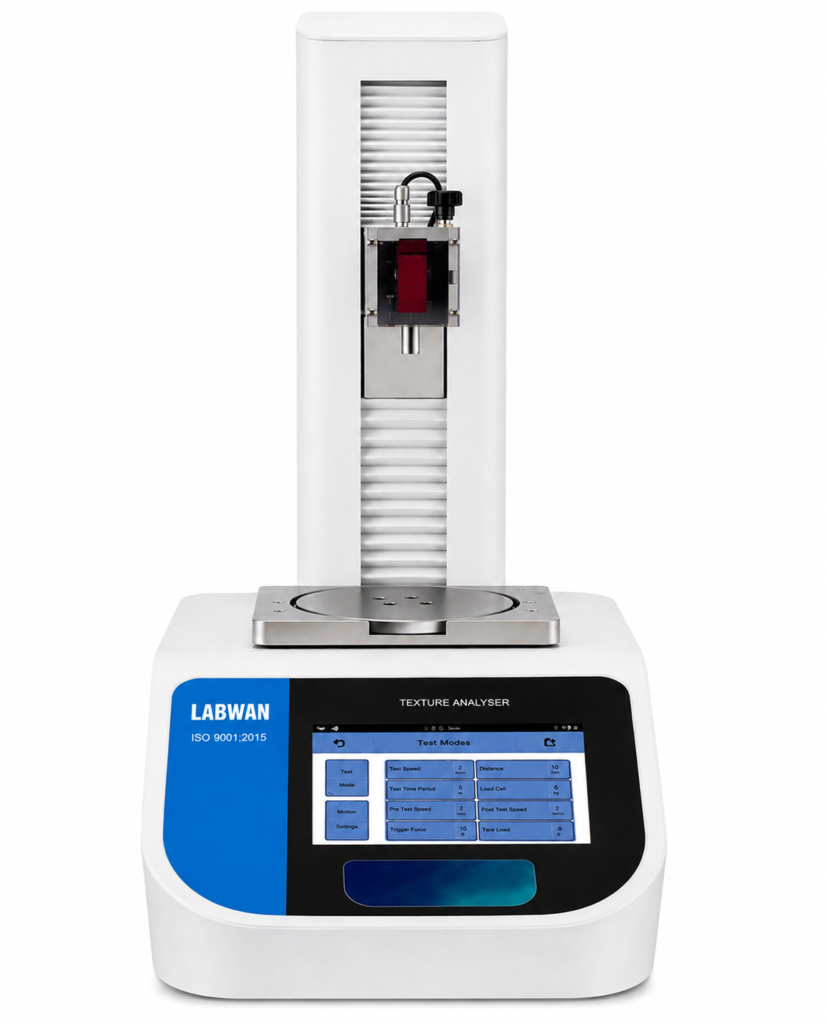

LABWAN Texture Analyser LWTA-600
Model LWTA-600
In Stock
The LABWAN LWTA-600 Texture Analyser is designed for laboratory and production texture analysis. It provides a 7-inch colour touch screen with direct measurement-curve viewing, programmable test methods, measurement storage and USB data transfer.
ISO 9001 Certified
Service & Support
Key Features
- Integrated temperature probe
- Direct curve display
- Programming and recording of test methods
- Data recording and USB transfer
- Wide range of probes and fixtures
- Interchangeable force sensors
- Height-adjustable tray
- Compatible with RheoTex software
- 7-inch colour touch screen
- Storage of measuring methods
- Data backup and export through USB
Specifications
| Parameter | Value |
|---|---|
| Type of Device | Texture Analyzer operating in Compression and Traction with 7" Touch screen |
| Choice of Sensors | 500 N (50 kg), Resolution 0.01 N (1 g) |
| Accuracy | +/- 0.1% of the full scale |
| Speed Range | From 0.1 to 10 mm/s +/-0.2% |
| Motion | Height: 330 mm / Resolution: 0.1 mm |
| Temperature Probe | Equipped with a PT100 sensor which indicates temperatures between -50°C to +300°C |
| Display | Force – Speed – Distance – Temperature – Time – Measuring probe – Level of sensitivity; Date/hour – Choice of force units: gram or Newton |
| Languages | French/English/Turkish/German |
| Security and Confidentiality | An "operator" function allows you to enter a username for your instrument. This user must then be identified using a 4-digit code. There is also a protected mode that locks your measurement conditions. |
| Supply Voltage | 90-240 VAC 50/60 Hz |
| PC Connections | RS232 Port |
| Printer Connection | USB Host Port – Compatible PCL/5 |
| Integrated Adjustable Turntable | Diam. 160 mm |
| Table for Attaching Inserts | 120 x 220 mm |
| Available Operating Modes | Compression – Relaxation – Traction – TPA cycle – Penetrometry and relative compression mode |
| Dimensions and Weight | D610 x W340 x H710 mm |
| Weight | 25 kg |
