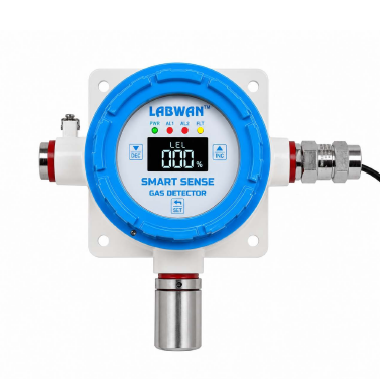

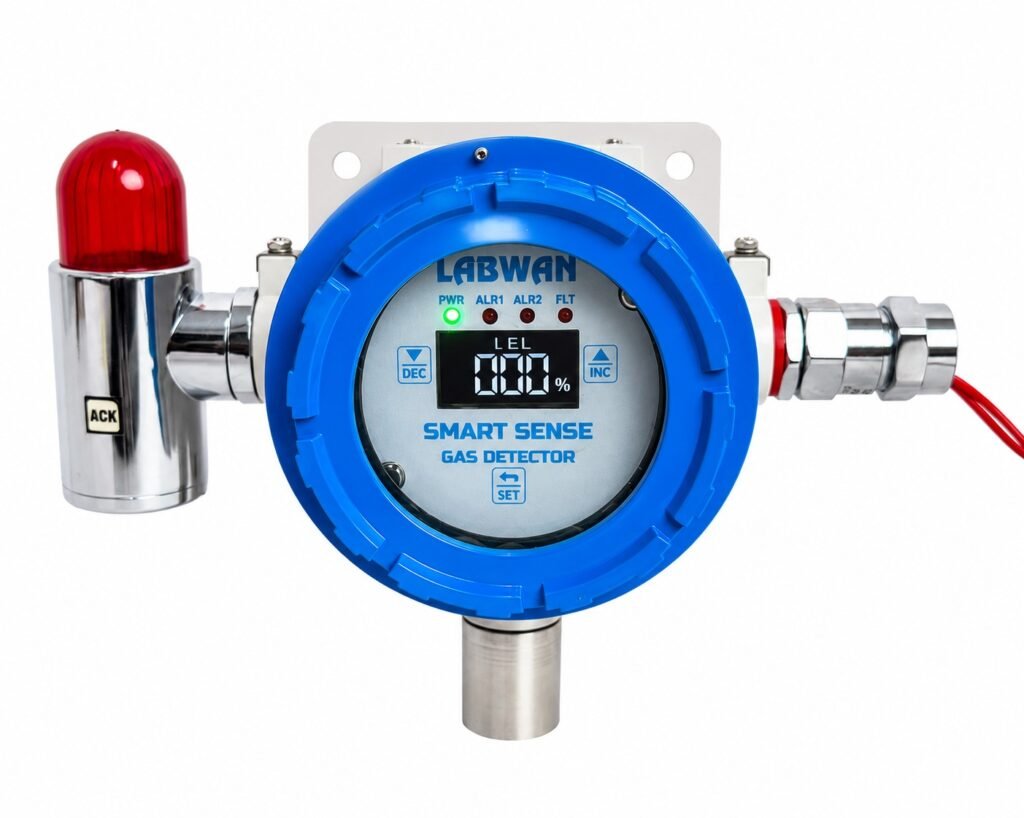

LABWAN Smart Sense Gas Detector
Model L010A - L100B
In Stock
A fixed gas detection transmitter designed for continuous monitoring of hazardous gases in industrial environments. The system is intended for reliable field operation and supports multiple gas-sensing configurations, including electrochemical, NDIR, catalytic, solid-state and PID sensing technologies.
ISO 9001 Certified
Service & Support
Key Features
- Bright OLED display
- Explosion-proof flameproof housing
- Smart digital gas transmitter
- Non-intrusive calibration
- Continuous gas monitoring
- Industrial-grade design
- Tri-color LED status indication
- High accuracy and stability
- Field-replaceable smart sensor
- Wall-mountable design
- Microcontroller-based system
- Easy configuration via magnetic wand
- Suitable for hazardous industrial areas
Specifications
| Code | Gas Name | Range | Resolution | Type |
|---|---|---|---|---|
| ELECTROCHEMICAL SENSOR TECHNOLOGY | ||||
| O1 | Oxygen (O₂) | 25 | %V/V | 0.01 |
| O2 | Oxygen (O₂) | 0–100 | %V/V | 0.1 |
| NT1 | Nitrogen (N₂) | 0–100 | %V/V | 0.01 |
| TOXIC GAS SENSOR | ||||
| T1 | Ammonia (NH₃) | 100 | PPM | 1 |
| T2 | Ammonia (NH₃) | 1000 | PPM | 1 |
| T3 | Bromine (Br₂) | 20 | PPM | 0.001 |
| T4 | Carbon Monoxide (CO) | 500 | PPM | 1 |
| T5 | Carbon Monoxide (CO) | 1000 | PPM | 1 |
| T6 | Chlorine (Cl₂) | 10 | PPM | 0.1 |
| T7 | Ethylene Oxide (ETO) | 100 | PPM | 1 |
| T8 | Hydrogen (H₂) | 100 | PPM | 1 |
| T9 | Hydrogen Bromide (HBr) | 20 | PPM | 1 |
| T10 | Hydrogen Chloride (HCl) | 20 | PPM | 1 |
| T11 | Hydrogen Cyanide (HCN) | 100 | PPM | 1 |
| T12 | Hydrogen Fluoride (HF) | 10 | PPM | 0.001 |
| T13 | Hydrogen Sulfide (H₂S) | 100 | PPM | 1 |
| T14 | Hydrogen Sulfide (H₂S) | 200 | PPM | 1 |
| T15 | Ozone (O₃) | 5 | PPM | 0.001 |
| T16 | Phosphine (PH₃) | 10 | PPM | 0.1 |
| T17 | Nitrogen Dioxide (NO₂) | 20 | PPM | 0.1 |
| T18 | Nitric Oxide (NO) | 250 | PPM | 1 |
| T19 | Sulfur Dioxide (SO₂) | 20 | PPM | 0.1 |
| T20 | Sulfur Dioxide (SO₂) | 100 | PPM | 1 |
| COMBUSTIBLE GASES | ||||
| C1 | Acetone (CH₃)₂CO | 100 | %LEL | 1 |
| C2 | Acetylene (C₂H₂) | 100 | %LEL | 1 |
| C3 | Ammonia (NH₃) | 100 | %LEL | 1 |
| C4 | Butane / n-Butane (C₄H₁₀) | 100 | %LEL | 1 |
| C5 | Carbon Monoxide (CO) | 100 | %LEL | 1 |
| C6 | Ethanol (C₂H₅OH) | 100 | %LEL | 1 |
| C7 | Ethyl Acetate (C₄H₈O₂) | 100 | %LEL | 1 |
| C8 | Ethylene (C₂H₄) | 100 | %LEL | 1 |
| C9 | Hexane / n-Hexane (C₆H₁₄) | 100 | %LEL | 1 |
| C10 | Hydrogen (H₂) | 100 | %LEL | 1 |
| C11 | Isopropanol (CH₃CHOHCH₃ / C₃H₈O) | 100 | %LEL | 1 |
| C12 | Methane (CH₄) | 100 | %LEL | 1 |
| C13 | Methyl Ethyl Ketone (CH₃COC₂H₅) | 100 | %LEL | 1 |
| C14 | Methanol (CH₃OH) | 100 | %LEL | 1 |
| C15 | n-Heptane (C₇H₁₆) | 100 | %LEL | 1 |
| C16 | n-Pentane (C₅H₁₂) | 100 | %LEL | 1 |
| C17 | Pentane / n-Pentane (C₅H₁₂) | 100 | %LEL | 1 |
| C18 | Propane / n-Propane (C₃H₈) | 100 | %LEL | 1 |
| C19 | Toluene (C₆H₅CH₃) | 100 | %LEL | 1 |
| C20 | Unleaded Petrol | 100 | %LEL | 1 |
| C21 | CNG / LNG / LPG / Natural Gas / Flammable Gas | 100 | %LEL | 1 |
| NDIR SENSOR TECHNOLOGY | ||||
| N1 | Carbon Dioxide (CO₂) | 5000 | PPM | 1 |
| N2 | Carbon Dioxide (CO₂) | 5 | %V/V | 0.01 |
| N3 | Carbon Dioxide (CO₂) | 100 | %V/V | 0.1 |
