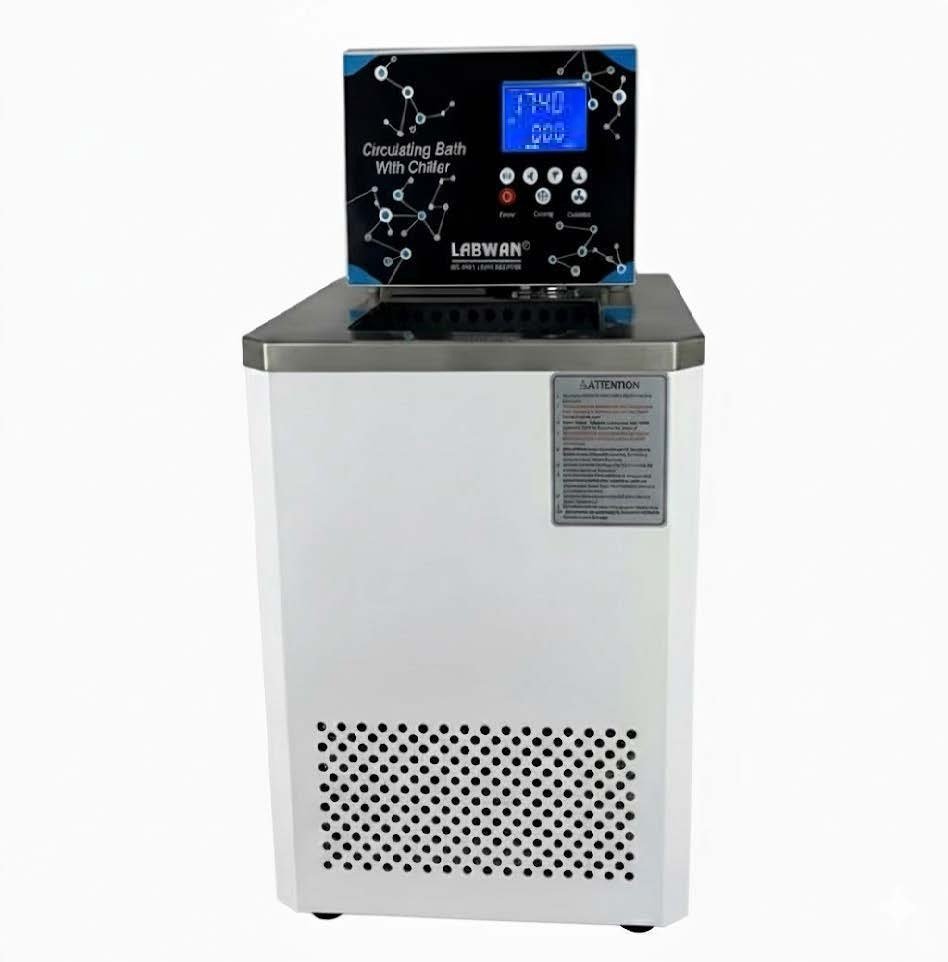

LABWAN Refrigerated Circulating Bath LRCB-12

Model LRCB-12 In Stock

LABWAN LRCB-12 Refrigerated Circulating Bath is a microprocessor-based refrigerated circulating bath with PID temperature control, PT-100 temperature sensor, air-cooled compressor refrigeration, internal and external circulation, and programmable temperature control. It provides a 12 L tank capacity with a temperature control range of -20°C to 100°C.

Get Quote Catalog Not Available

ISO 9001 Certified Service & Support

Key Features

PT-100 Temperature Sensor
Microprocessor PID Control
Programmable Temperature Controller
Overheat Protection
Liquid Level Alarm Function
Fast Cooling
Low Noise & Low Vibration
Stable & Reliable Performance
Air-Cooled Refrigeration Through Compressor
Internal & External Pump Circulation
Both Side Handle for Easy Moving

Specifications

Parameter	Value
Temp. Control Range	-20°C ~ 100°C
Temp. Resolution & Accuracy	Resolution: 0.01°C, Accuracy: ±0.05°C
Temp. Control	Microprocessor PID
Display	LCD
Refrigeration Mode	Air cooled refrigeration through compressor
Refrigerant	R134A
Pump Circulation	Internal & External
Temp. Sensor	PT-100
Pump Flow Rate	6L/min
Tank Capacity	12L
Tank Size	300 x 250 x 200 mm
Bath Opening	235 x 160 mm
Bath Depth	200 mm
Power Supply	AC 220V / 50 Hz
Dimension	320 x 370 x 765 mm
Standard Accessories	SS Lid
