Spectrophotometer

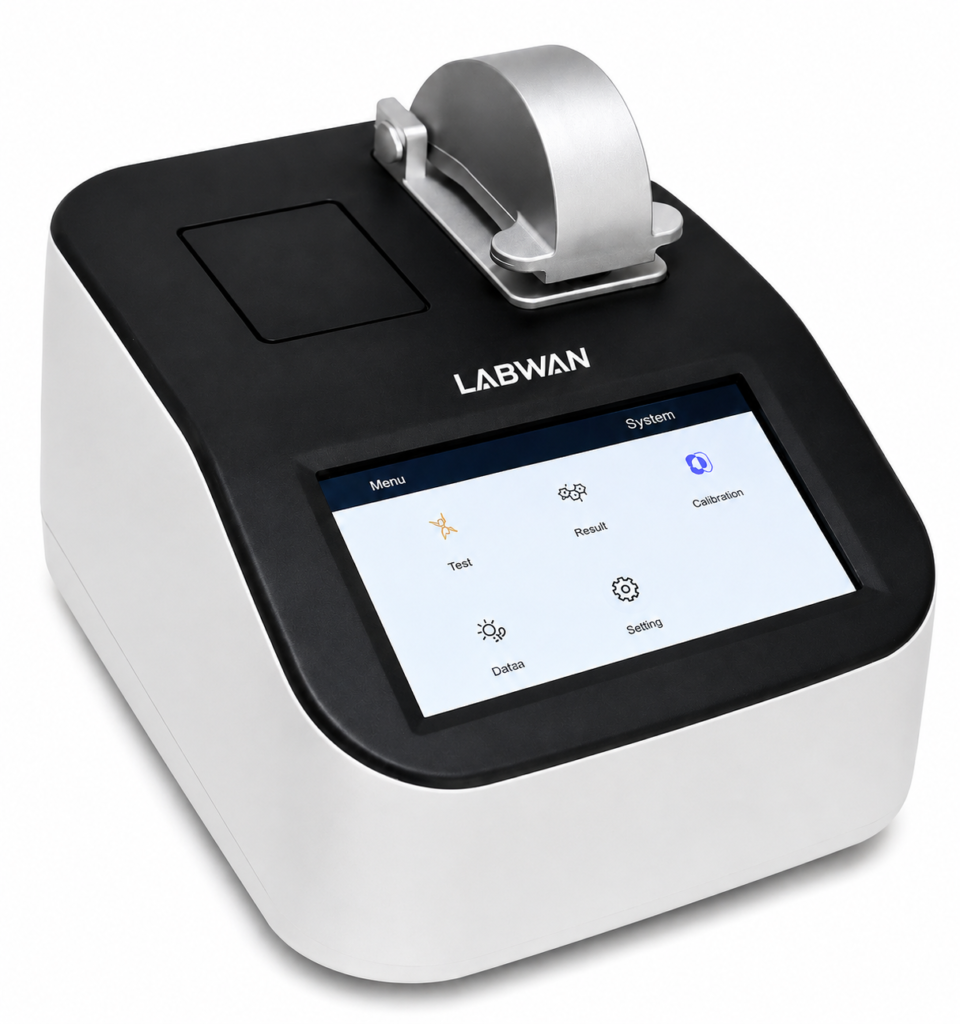

LABWAN Nano Drop / Microvolume Spectrophotometer LNS-5100
Model LNS-5100
In Stock
A micro-volume UV spectrophotometer designed for the measurement of nucleic acids and proteins, with additional bacterial cell concentration detection at OD600. It features an Android-based operating system with a built-in touchscreen and supports direct data output through USB and an SD-RAM card.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Micro-volume measurement of nucleic acids and proteins.
- Bacterial cell concentration detection using OD600.
- Android operating system with 7-inch touchscreen.
- Built-in printer for data printing.
- Data output through USB memory and SD-RAM card.
- Three optical path detection technology.
- LED light source.
- Sample measurement without dilution.
- Fluorescence function.
- Strong repeatability and high linearity
Specifications
| Parameter | Value |
|---|---|
| Optical Path | 0.05mm (high concentration); 0.2mm, 1.0mm (ordinary concentration) |
| Detectors | Ultraviolet silicon |
| Nucleic Acid Detection Range | 15000 ng/uL (dsDNA) |
| Fluorescence Sensitivity | DsDNA: 0.5pg/ul |
| Fluorescence Linearity | <1.5% |
| OD600 Absorbance Range | 0~6.000Abs |
| OD600 Absorbance Stability | [0,3)<0.5%, [3,4)<2% |
| OD600 Absorbance Accuracy | (0,2)<0.005A, [2,3)<1%, [3,4)<2% |
| OD600 Repeatability of Absorbance | [0,3)<0.5%, [3,4)<2% |
| Noise Level | 0.002Arms (OA, 260nm); Between peaks 0.005Arms (260nm) |
| Absorbance Range | 0.04-300A (Equivalent to 10mm) |
| Absorbance | 0.003Abs (0.2mm optical range) |
| Absorbance Accuracy | ±1% (7.332Abs at 260nm) |
| Sample Volume Requirements | 0.5~2ul |
| Wavelength Range | 260nm, 280nm |
| Wavelength Accuracy | ±1nm within |
| Wavelength Reproducibility | <0.2nm |
| Sample Base Material | Quartz fiber and stainless steel |
| Testing Time | <6S |
| Power Consumption at Standby | 5W |
| Data Output Method | USB |
| Light Source | LED |
| Power Adapter | 24V DC |
| Power Consumption | 25W |
| Dimension | W200 x D260 x H165mm |
| Weight | 4.5Kg |
