Hydraulic Pellet Press

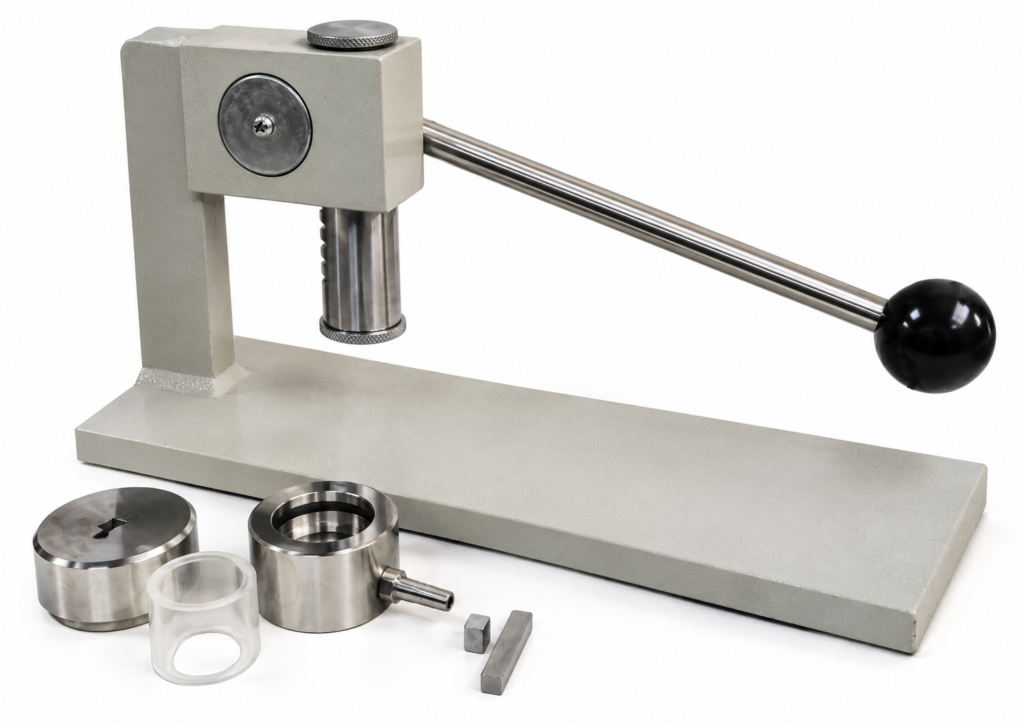

LABWAN Mini-Arbor Desk Top KBr Pellet Press
Model LW-KBr4T
In Stock
The LABWAN Mini-Arbor Desk Top KBr Pellet Press LW-KBr4T is a compact laboratory press designed for preparing solid sample pellets for IR, FTIR and XRF analysis. It uses a torque-wrench-operated die-set assembly for controlled and repeatable pellet preparation and is suitable for R&D and quality-control laboratories.
ISO 9001 Certified
Service & Support
Key Features
- Economical full-scale KBr pellet press
- Produces transparent, reproducible pellets with consistent pressure application
- Torque-wrench operation for controlled and repeatable pressure
- 20 ft-lb torque capacity
- Up to 16,000 lbs/in² pressure
- 3-ton laboratory hydraulic pellet press
- Supports 2–6 mm pellet preparation for IR/FTIR/XRF solid sampling
- 7 mm hardened die sets with optically polished faces
- Aerospace-grade nickel-based alloy for die-set anvils
- Interchangeable die sets
- Can be operated on a workbench, bench-mounted vise, or table edge
- High-pressure pumping unit supplies hydraulic fluid to the up-stroking cylinder ram
Specifications
| Parameter | Value |
|---|---|
| Product Name | Mini-Arbor Desk Top KBr Pellet Press |
| Model Number | LW-KBr4T |
| Model | ABP 4T |
| Pressure Range | 0–3 T |
| Piston Diameter | 25 mm |
| Maximum Piston Stroke | 30 mm |
| Workspace | 75 × 250 mm |
| Press Stability | ≤1 MPa/5 min |
| Weight | 5 kg |
