Spectrophotometer

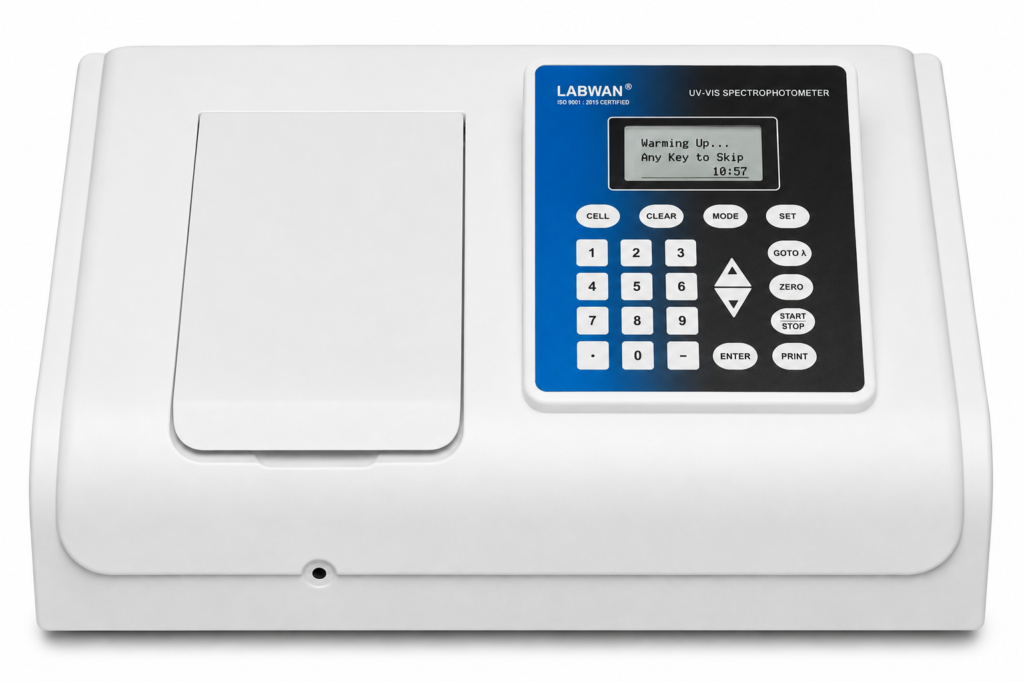

LABWAN Microprocessor Single Beam UV-VIS Spectrophotometer with Graphical Scanning Software LMSS-718G
Model LMSS-718G
In Stock
The LMSS-718G is a microprocessor-controlled single-beam UV-VIS spectrophotometer with graphical scanning software. It features automatic wavelength and filter adjustment, standard-curve measurement functions, USB connectivity and PC control for flexible measurement and analysis.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Single-chip microcomputer control
- Large 128 × 64 dots LCD screen
- Large memory for storing multiple sets of data and curves
- Auto zero and 100% adjustment
- Automatic wavelength adjustment
- Automatic filter changing
- Large sample pool accommodating 5 mm–100 mm samples
- Supports up to nine standard samples for standard-curve establishment
- Direct K and B factor input for quantitative measurement
- Direct input of standard sample and concentration values for quantitative standard curves
- General-purpose parallel printer port
- USB interface
- Standard PC control for more accurate and flexible measurement
Specifications
| Parameter | Value |
|---|---|
| Wavelength Range | 190~1100nm |
| Band Width | 2nm |
| Wavelength Accuracy | +0.5nm |
| Wavelength Repeatability | <0.2nm |
| Photometric Accuracy | +0.3% T |
| Photometric Repeatability | 0.1% T |
| Stray Light | <0.05% T (220nm), NaI, 360nm, NaNO2 |
| Stability | 0.001A/h@500nm |
| Photometric Mode | T,A,C,E |
| Wavelength Setting | Automatic |
| Photometric Display Range | -0.3~3Abs |
| Display Mode | LCD Screen (128*64 Dots) |
| Detector | Import Silicon Photodiode |
| Light Source | Import Deuterium Lamp & Tungsten Halogen Lamp |
| Power Requirement | AC 220V/50Hz 110V/60Hz, 120W |
| Dimensions (W*D*H) | 52x49x18 CM |
| Weight | 15Kg |
| Cell Holder | 50 mm for Cell Holder |
