Spectrophotometer

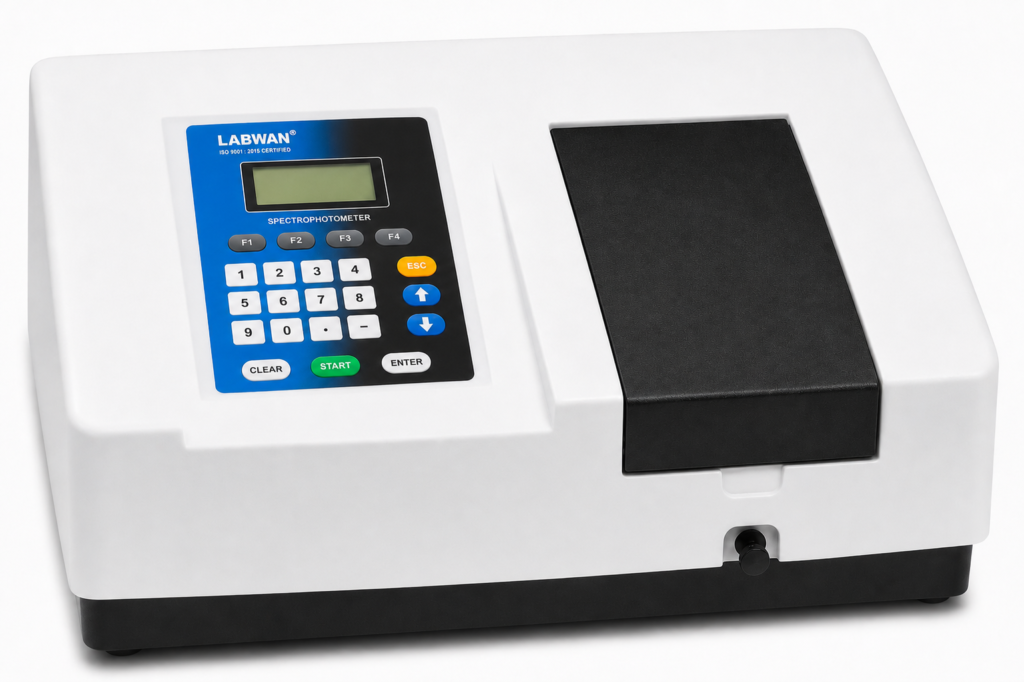

LABWAN Microprocessor Single Beam UV-VIS Spectrophotometer with Graphical Scanning Software LMSS-716G
Model LMSS-716G
In Stock
The LMSS-716G is a microprocessor UV-VIS single-beam spectrophotometer with graphical scanning software, a 1200 lines/mm grating optical system and imported silicon photodiode detector. It supports PC-based photometric, quantitative, spectral scanning, kinetics, DNA/protein and multi-wavelength analysis.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Unique optical system with 1200 lines/mm grating and imported receiver for reliable performance
- PC connectivity software supporting photometric analysis, quantitative analysis, spectral scanning, kinetics, DNA/protein analysis and multi-wavelength testing
- 51 microcomputer system with storage for 200 test data and 100 standard curves
- Plug-type deuterium and tungsten lamps allowing light-source transfer without optical debugging
Specifications
| Parameter | Value |
|---|---|
| Product Type | Microprocessor Single Beam UV-VIS Spectrophotometer With Graphical Scanning Software |
| Model | LSP-716 |
| Cell Holder | 50MM cell holder 4 position |
| Optical System | Single Beam, Grating 1200 lines/mm |
| Wavelength Range | 190~1100nm |
| Spectral Bandwidth | 2 nm |
| Wavelength Accuracy | 1nm |
| Wavelength Repeatability | <=0.2 nm |
| Photometric Accuracy | 0.5%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | 0 - 200%T, - 0.3 - 3A |
| Stray Light | 0.15%T |
| Stability | ±0.0002A/h @500nm |
| Baseline Flatness | ±0.002 A |
| Noise | ±0.001 A |
| Wavelength Setting | Auto |
| Light Source | Imported Deuterium & Tungsten lamp |
| Display | 128*64 LCD |
| Detector | Imported Silicon Photodiode |
| Output | USB port & Parallel port (Printer) |
| Power | AC 220V/50Hz; AC 110V/60Hz |
| Dimension | 590*460*220mm |
| Net Weight | 16kg |
| Shipping Size | 700*580*340mm |
| Weight | 20kg |
| Standard Configuration | Main Set — 1 No., USB Cable — 1 No., Accessory kit including a 4 glass cell — 1 No., 2 Quartz Cell — 1 No., Operating Manual Software Manual — 1 No., Dust Cover — 1 No., Software CD — 1 No., Software Key — 1 No., Power Cable — 1 No. |
