Tablet Testing Equipment

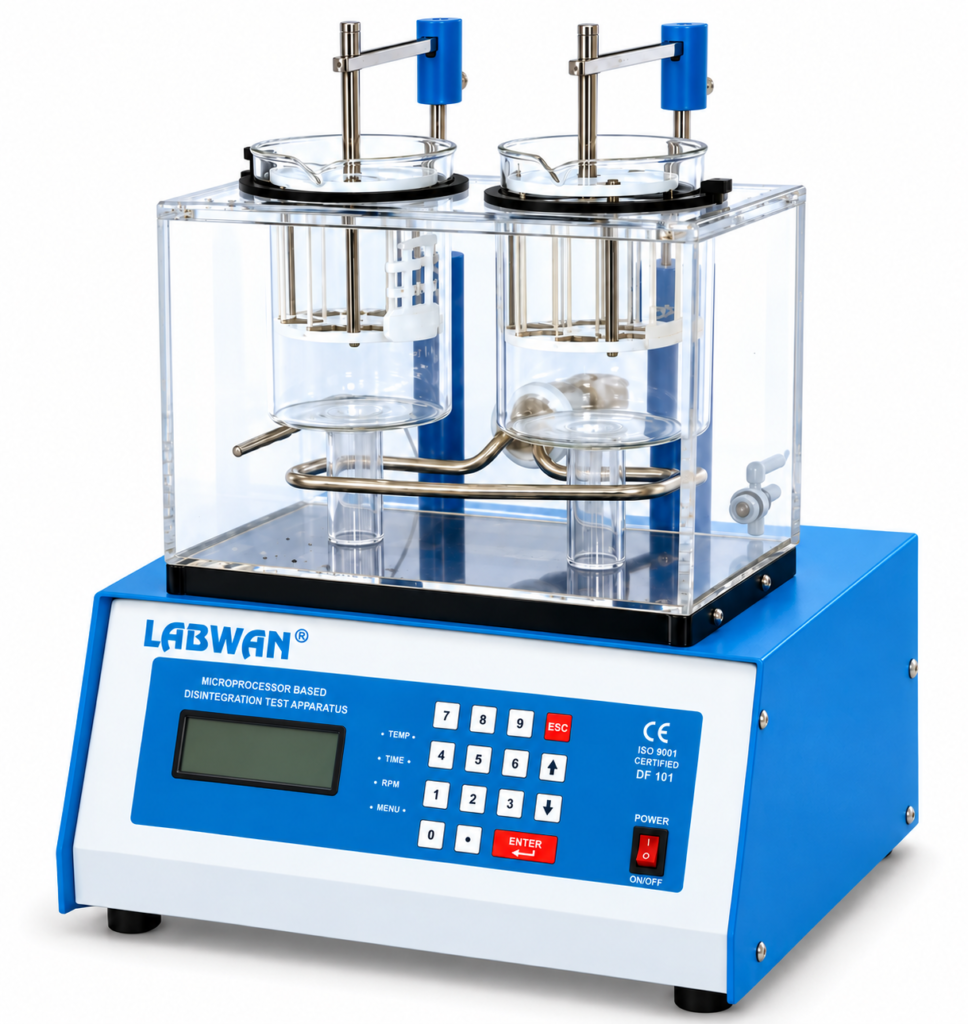

LABWAN Microprocessor Disintegration Test Apparatus LMDTA-1731
Model LMDTA-1731
In Stock
Microprocessor Disintegration Test Apparatus with a 20 × 4 line alphanumeric LCD display with backlight, 15 soft-touch membrane keys, storage for 20 different test setups, programmable temperature control from 20°C to 50°C, and USB connectivity. It provides 55 mm up and down movement at 30 ± 1 strokes per minute.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- 20 × 4 line alphanumeric LCD with backlight
- 15 soft-touch membrane type keys
- Facility for 20 different test setups
- 400 samples storage facility
- USB interface available
- Audio visual indicators for system status
- Baskets “UP” & “DOWN” movement as per IP/USP specifications
- Complies with USP, IP specifications
- Microprocessor-based temperature control using PT100/Semiconductor Sensor
Specifications
| Parameter | Value |
|---|---|
| Display | 20 x 4 line alphanumeric LCD display with backlit |
| Keyboard | 15 soft touch membrane keys |
| LED's | 4 LED's available for different status indications. 3 LED's for Test status like Run, Alarm, End and one LED for heater on/off status. |
| Setup Data | Facility for 20 different test setups available |
| Printer | Provision for the attachment of dot-matrix printer with centronics parallel interface |
| Speed | 55 mm. 30 ± 1 strokes per minute |
| Resolution | 1 Sec – 99 Minutes |
| Temp. Range | 20°C – 50°C |
| Temp. Accuracy | ± 0.2°C |
| Temp. Control | Microprocessor based using PT100/Semiconductor Sensor |
| Reaction Beaker | 1000 ml |
| Heater | 0.4 KW (Approx.) |
| PC Connectivity | USB interface available |
| Power | 230 V ± 10% AC, 50 Hz |
| Dimensions | 365 x 350 x 495 mm (L x B x H) (Approx.) |
| Weight | 9 Kg (Approx.) |
