Centrifuges

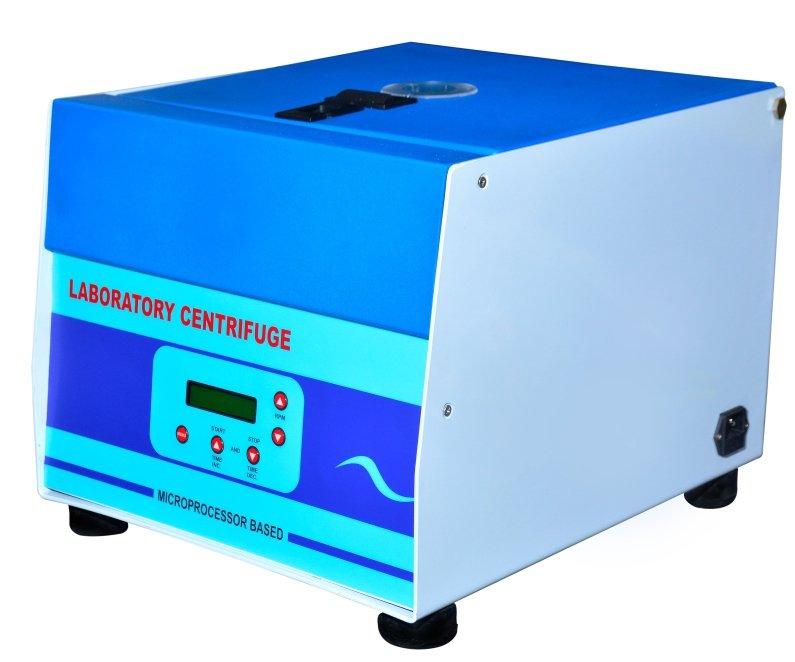

LABWAN Medical Centrifuge LMC-9A
Model LMC-9A
In Stock
The LMC-9A is a bench-top medical centrifuge for separating serum from blood and for PCV and cytology tests. It features a CRC sheet body with powder coating, metallic centrifuge chamber, microprocessor-based programmable speed controller, digital timer and brushless motor. The model has a maximum speed of 2850 RPM and maximum RCF of 1325 × g.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Bench-top centrifuge for serum separation from blood, PCV and cytology tests.
- CRC sheet body finished with powder coating.
- Metallic centrifuge chamber.
- Microprocessor-based programmable speed controller.
- Speed control from 400 to 2800 RPM with an interval of 400 RPM.
- Digital timer from 1 to 99 minutes with an interval of 1 minute.
- Maximum speed of 2850 RPM.
- Maximum RCF of 1325 × g.
- Brushless motor.
- Double-walled lid.
- Motor fitted on anti-vibration pad.
- Machine can run throughout the day.
- Warranty of one year.
- 220 Volts, 50 Hz AC operation.
Specifications
| Parameter | Value |
|---|---|
| Application | Separate serum from blood and PCV, Cytology tests etc. |
| Body | CRC sheet, finished with powder coating |
| Centrifuge Chamber | Metallic |
| Speed Controller | Microprocessor based with pre programmable speed controller |
| Speed Range | 400 to 2800 rpm |
| Speed Interval | 400 rpm |
| Timer | 1 to 99 minutes with an interval of 1 min. |
| Maximum Speed | 2850 rpm |
| Maximum RCF | 1325 x g |
| Motor | Brushless motors |
| Power Supply | 220 Volts 50 Hz AC |
| Dimension of Machine | L = 395 mm, W = 360 mm, H = 280 mm |
| Weight of Machine | 12.5 kg Approx |
| Gross Weight of Machine | 14 kg (with box) |
| Rotor Capacity | 24 x 15 ml |
| Type of Rotor | Swing |
| Rotor Speed | 2850 RPM |
| Rotor RCF | 1325 x g |
