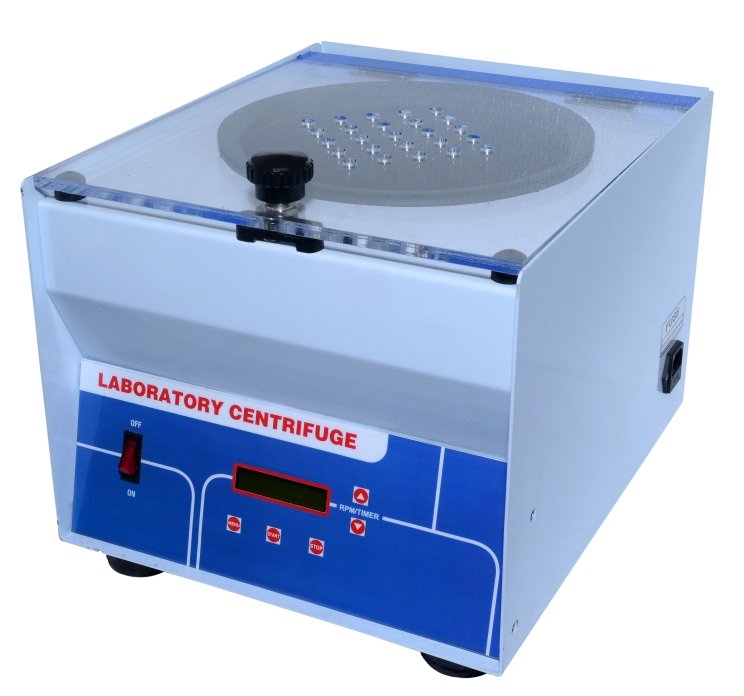

LABWAN Medical Centrifuge LMC-4
Model LMC-4
In Stock
The LMC-4 is a bench-top medical centrifuge designed for separating serum from blood and for PCV and cytology tests. It features a brushless motor, microprocessor-based programmable speed control, digital timer, metallic centrifuge chamber and an acrylic lid with lid lock.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Bench-top centrifuge for serum separation from blood, PCV and cytology tests.
- CRC sheet body finished with powder coating.
- Metallic centrifuge chamber.
- Microprocessor-based programmable speed controller.
- Speed control from 400 to 2800 RPM.
- Digital timer from 1 to 99 minutes.
- Maximum speed of 2800 RPM.
- Maximum RCF of 1325 × g.
- Brushless motor without carbon.
- 8 mm acrylic lid with lid lock.
- Motor fitted on anti-vibration pad.
- Machine can run throughout the day.
Specifications
| Parameter | Value |
|---|---|
| Application | Separate serum from blood and PCV, Cytology tests etc. |
| Body | CRC sheet, finished with powder coating |
| Centrifuge Chamber | Metallic |
| Speed Controller | Microprocessor based with pre programmable speed controller |
| Speed Range | 400 to 2800 rpm |
| Speed Interval | 400 rpm |
| Lid | See through acrylic lid of thickness 8mm with lid lock |
| Timer | 1 to 99 minutes with an interval of 1 min. |
| Maximum Speed | 2800 rpm |
| Maximum RCF | 1325 x g |
| Motor | Brushless motors (motor without carbon) |
| Power Supply | 220 Volts 50 Hz AC |
| Dimension of Machine | L = 320 mm, W = 375 mm, H = 310 mm |
| Weight of Machine | 12.5 kg Approx |
| Gross Weight of Machine | 14 kg (with box) |
| Rotor Type | Angular |
| Rotor Capacity | 8 x 15 ml |
| Rotor Speed | 2850 RPM |
| Rotor RCF | 1325 x g |
| OPTIONAL ADAPTOR | |
| 8 Adapters | 4ml Vacutainers |
| 8 Adapters | 5ml to 10ml Vacutainers |
