Hydraulic Pellet Press

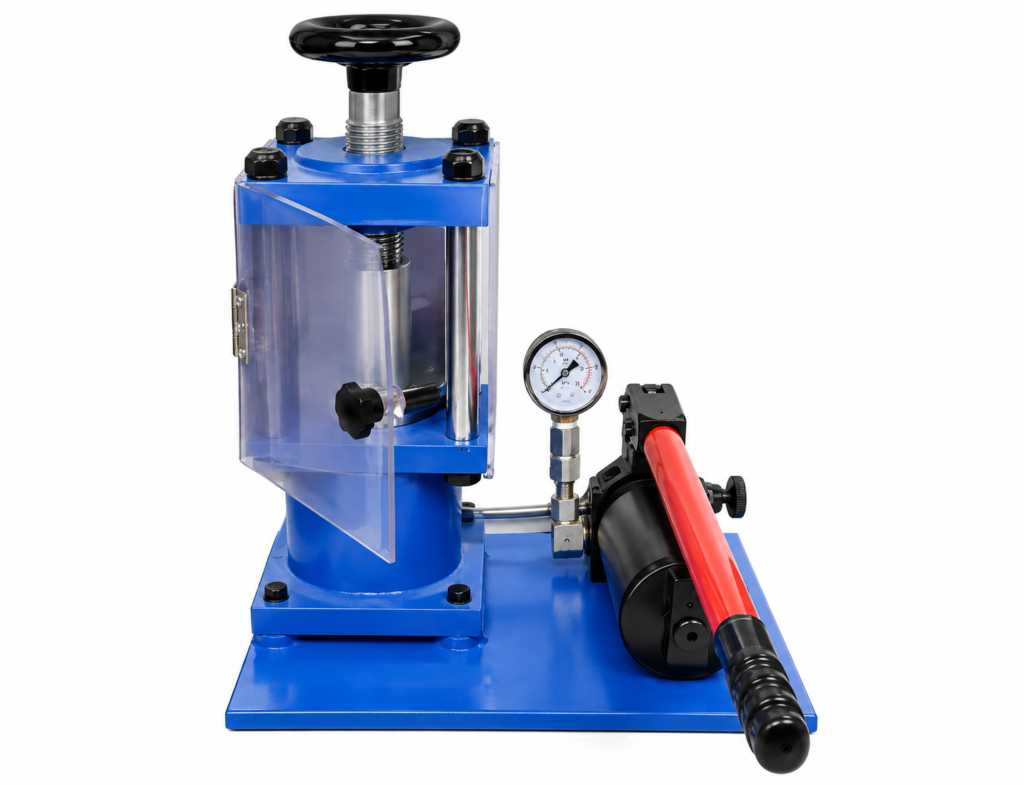

LABWAN Laboratory Manual Hydraulic Pellet Press
Model LW-LPPM SERIES
In Stock
The LABWAN Laboratory Manual Hydraulic Pellet Press LW-LPPM 15T is a compact manual hydraulic press producing a force of about 15 tons, designed for pellet preparation applications including IR/FTIR/XRF solid sampling. It features rigid steel construction, a protective safety shield, adjustable pressure control and a maximum load of up to 15T.
ISO 9001 Certified
Service & Support
Key Features
- 13 mm pellet used for IR/FTIR/XRF solid sampling
- 15 ton laboratory hydraulic pellet press
- Compact, elegant and robust construction
- High-pressure pumping unit supplies hydraulic fluid to the up-stroking ram
- Ram moves steadily and positively in the upward direction
- Available up to 25 MPa load
- Rigid steel construction
- Protective safety shield as standard
- Easy-to-read scale gauge calibrated in MPa
- Adjustable pressure control for reproducible load
- Suitable for FTIR KBr pellet, XRF pellet and thin film pressing
- Suitable for bench-top and glove box laboratory applications
Specifications
| Parameter | Value |
|---|---|
| Pressure Range | 0-15T |
| Piston Diameter | 50 mm |
| Maximum Piston Stroke | 20 mm |
| Table Diameter | 95 mm |
| Workspace | 90×90×150mm |
| Pressure Stability | ≤1MPa/5min |
| Weight | 35kg |
| Exterior Size | 280×210×380mm |
