Hydraulic Pellet Press

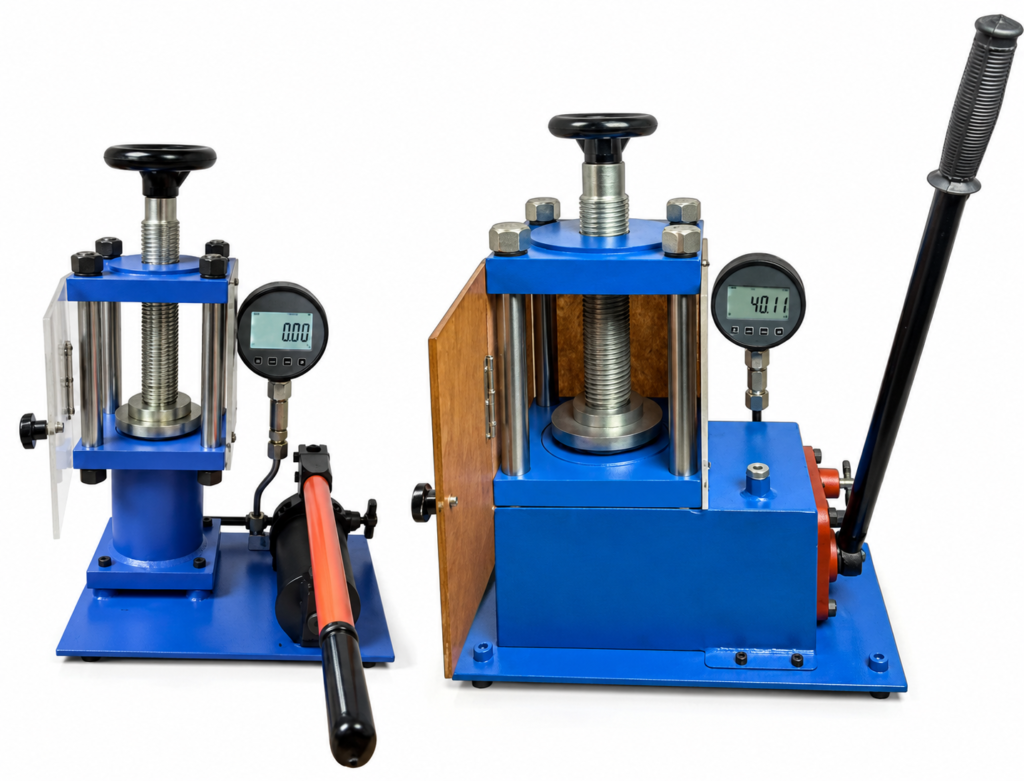

LABWAN Laboratory Manual Hydraulic Pellet Press (Digital Gauge)
Model LW-LMPDG
In Stock
The LABWAN Laboratory Manual Hydraulic Pellet Press (Digital Gauge) LW-LMPDG 15T is a compact hydraulic press producing approximately 15 tons of force for preparing compressed pellets from powdered materials. It is designed for applications including IR/FTIR/XRF solid sampling, pharmaceutical development, spectroscopy and bomb calorimetry, with bench-top and glove-box suitability.
ISO 9001 Certified
Service & Support
Key Features
- 13 mm pellet used for IR/FTIR/XRF solid sampling
- 15 ton laboratory hydraulic pellet press
- Compact, elegant and robust machine
- Crystal LCD 5 Digit × 2 Line display
- Accuracy: 0.25% of FSD
- ABS housing
- Operating temperature: (-)20 to 85 Degrees
- 3 × 1.5V AA battery supply with 3600h battery life
- 78 mm diameter
- Engineering units including Bar, CMHG, INH2O, INHG, KGCM, KPa, MH2O, MMH2O, MMHG, MPa and Psi
- 4 Digit LED display with 4-20mA output facility
- Adjustable pressure control value
- Reproducible load for repetitive applications
- Compact, small-footprint design
- Suitable for bench-top and glove-box laboratory applications
Specifications
| Parameter | Value |
|---|---|
| Pressure Range | 0-15T |
| Piston Diameter | 50 mm |
| Maximum Piston Stroke | 20 mm |
| Table Diameter | 95 mm |
| Workspace | 90×90×150mm |
| Pressure Stability | ≤1MPa/5min |
| Weight | 35kg |
| Exterior Size | 280×210×380mm |
