Hydraulic Pellet Press

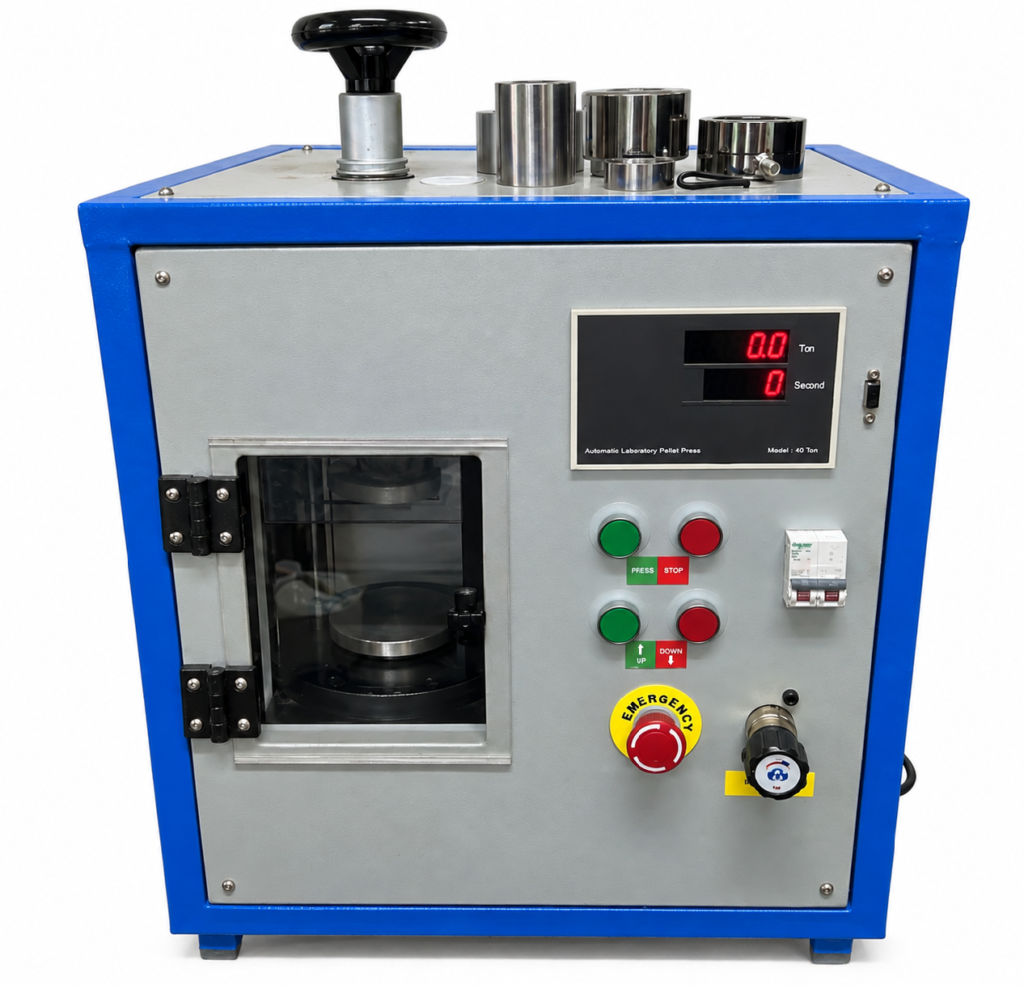

LABWAN Laboratory Digital Display Automatic Hydraulic Pellet Press
Model LW-HP 15TDS
In Stock
The LABWAN Laboratory Digital Display Automatic Hydraulic Pellet Press LW-HP 15TDS is an automatic and programmable hydraulic laboratory pellet press designed for repetitive pressing of sample pellets for XRF, IR and other analytical techniques. It can also be operated manually and features a programmable LCD interface for setting final pressure, hold time and return interval.
ISO 9001 Certified
Service & Support
Key Features
- Automatic and fully programmable pellet pressing
- Manual operation mode
- Programmable LCD screen interface
- Programmable final pressure, pressure hold time and return interval
- Safety interlock for chamber door
- Automatic pump shut-off safety valve
- Suitable for repetitive and accurate pellet pressing
- Compact laboratory bench design
- RS232 data login communication port
- External printer facility
- Accepts 13 mm, 31 mm, 35 mm and 40 mm pellet die sets
Specifications
| Parameter | Value |
|---|---|
| Pressure Range | 0-15T |
| Piston Diameter | 50 mm |
| Maximum Piston Stroke | 20 mm |
| Table Diameter | 110 mm |
| Workspace | 90×90×150mm |
| Pressure Stability | ≤1MPa/5min |
| Weight | 90kg |
| Exterior Size | 350×350×360mm |
| Max. Working Pressure | 135 Kg/sq.cm. |
| Max. Daylight | 120 mm |
| Electric Supply | 230 V AC Mains |
