LABWAN High-Resolution Video Borescope LVB-01H
Model LVB-01H
In Stock

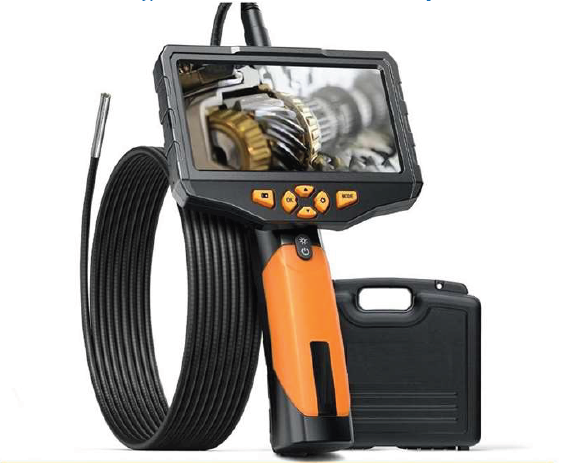

The LABWANLVB-01H High-Resolution Video Borescope is an industrial inspection system featuring a 5-inch colour LCD, 8 mm probe camera, 15 m cable, 1.0 Megapixel HD imaging, 6 adjustable high-intensity LEDs, and IP67 water resistance. Its flexible gooseneck probe is designed for inspection of narrow and difficult-to-access areas in automotive, mechanical, household appliance, sewer and general inspection applications.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Ultra-slim inspection camera
- 8 mm probe camera diameter
- 5-inch colour LCD display
- 1.0 Megapixel HD camera
- Flexible gooseneck probe
- 6 adjustable high-intensity LEDs
- IP67 waterproof protection
- 15 m cable length
- Image capturing and video recording facility
- Portable handheld design
- Suitable for inspection of narrow and difficult-to-access areas
- 2600 mAh lithium battery
- CE, RoHS and FCC certified
Specifications
| Specification | Value |
|---|---|
| Screen Type | 5.0 inch Color LCD |
| Resolution | 854 × 480 Pixels |
| Video Recording Resolution | 1280 × 720 |
| Image Capturing Resolution | 1280 × 720, 1920 × 1080 |
| Probe Camera Diameter | 8 mm |
| Cable Length | 15 mtr |
| Camera Resolution | 1.0 Megapixel HD |
| Viewing Angle | 70° |
| Depth of Field | 30 mm–100 mm |
| Light Source | 6 adjustable high intensity LEDs |
| Power Source | 2600 mAh Lithium Battery |
| Maximum Battery Life | 3–5 hours from full charge |
| Water Resistance | IP67 |
| Certification | CE, ROHS, FCC |
