Magnetic Stirrers

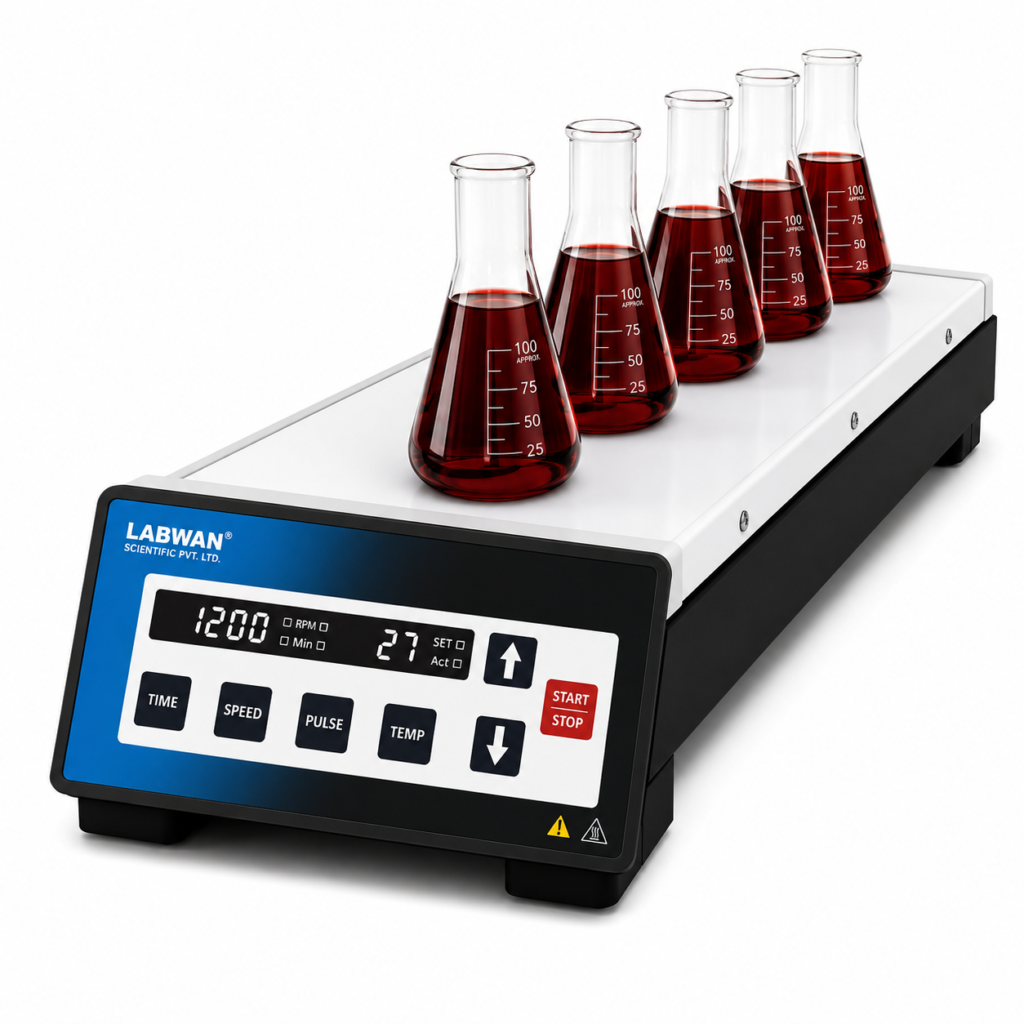

LABWAN Heated Magnetic Stirrer LHMS-05
Model LHMS-05
In Stock
5-position heated magnetic stirrer with microprocessor control and BLDC motor. It provides variable speed from 300–1500 RPM, heating from ambient to 120°C, programmable pulse mode and a maximum stirring quantity of 400 ml per position.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Powerful BLDC motor
- Microprocessor controlled
- 5 stirring positions
- Variable speed ranging from 300–1500 RPM in steps of 10 RPM
- Timer setting from 1–999 mins and infinite
- Heater temperature setting from ambient to 120°C
- Homogenous temperature distribution across heating plate
- Programmable pulse mode
- Closed design for easy cleaning and protection from accidental spills
- Water proof heater with in-built safety cut-off
- Non-slip strength rubber feet
- CE Certified
Specifications
| Parameter | Value |
|---|---|
| Motor Type | Brushless DC motor |
| Number of Stirring Positions | 5 |
| Stirring Quantity Max | 400 ml per position |
| Variable Speed | 300-1500 RPM in steps of 10 RPM |
| Heater Temperature Range | Ambient to 120° C |
| Run Time | 1-999 mins & infinite |
| Pulse Mode | Programmable pulse mode - user can set time from 30 to 99 seconds |
| Set-up Plate Material | SS with Ceramic coated |
| Set-up Plate Dimensions | 565 x 136 x 75 mm |
| Weight | 3 Kgs |
| Length of stir bar | 25 mm |
| Protection Class | IP 42 |
| Voltage / Consumption | 220 V / 1.7 A / 450W |
