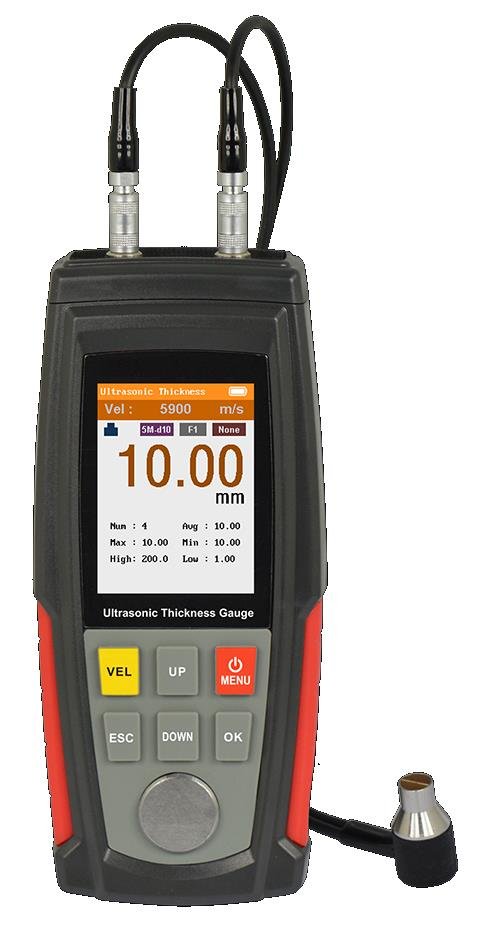

LABWAN Handheld Ultrasonic Thickness Gauge LUTG-222B
Model LUTG-222B
In Stock
The UTG-222B Intelligent Handheld Ultrasonic Thickness Gauge is a microprocessor-controlled instrument designed for fast, accurate and non-destructive thickness measurement of various materials. It is suitable for measuring metals, plastics, ceramics and glass, as well as monitoring pipelines, pressure vessels and corrosion in industrial components.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Microprocessor-controlled operation
- Menu operation
- USB charging
- Colour screen HD display
- Data storage, query and deletion
- Chart analysis of measurement data
- Charging protection
- Screen brightness selection
- Automatic shutdown selection
- High/low limit alarm
- Portable handheld design
- Suitable for industrial production and testing
- Non-destructive ultrasonic measurement
Specifications
| Specification | Value |
|---|---|
| Measuring Range | 1.00–225.0 mm |
| Data Storage | 500 |
| Probe Selection | Available |
| Operation Frequency | 5 MHz |
| Measurement Error | ±(0.5%H + 0.05) mm |
| Resolution | 0.01 mm (1.00–99.99 mm); 0.1 mm (100–225 mm) |
| Lower Limit of Pipe Measurement | Φ20 × 3 mm (Steel) |
| Adjustment Range of Sound Speed | 1000–9999 m/s |
| Temperature Range of Operation | 0–40°C |
| Battery | 3 Ni-MH Rechargeable Batteries, 1.2 V |
| USB Charging | 5 V, 1 A |
| Dimensions | 65 × 146 × 30 mm |
| Weight | 130 g |
| MEASUREMENT & ANALYSIS FUNCTIONS | |
| Data Storage | Up to 500 Measurements |
| Data Management | Storage, Query & Deletion |
| Data Analysis | Chart Analysis |
| Limit Alarm | High / Low Limit Alarm |
| Display | Colour HD Screen |
| Screen Brightness | Selectable |
| Auto Shutdown | Selectable |
| Charging | USB Charging with Charging Protection |
| STANDARD PACKING | |
| Main Unit | 1 |
| Probe | 1 |
| Battery with Charger | Included |
| UTG Gel | Included |
| Box | 1 |
| Manual | Included |
