Centrifuges

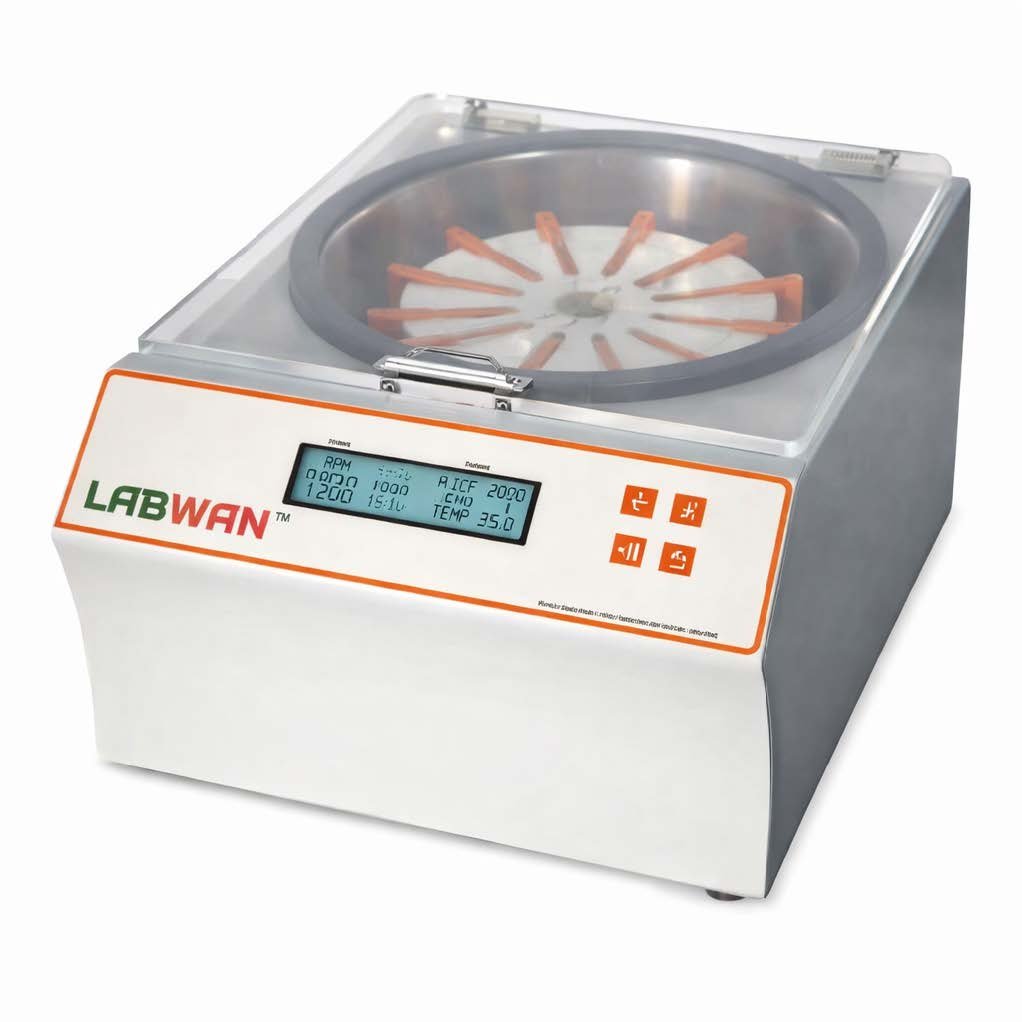

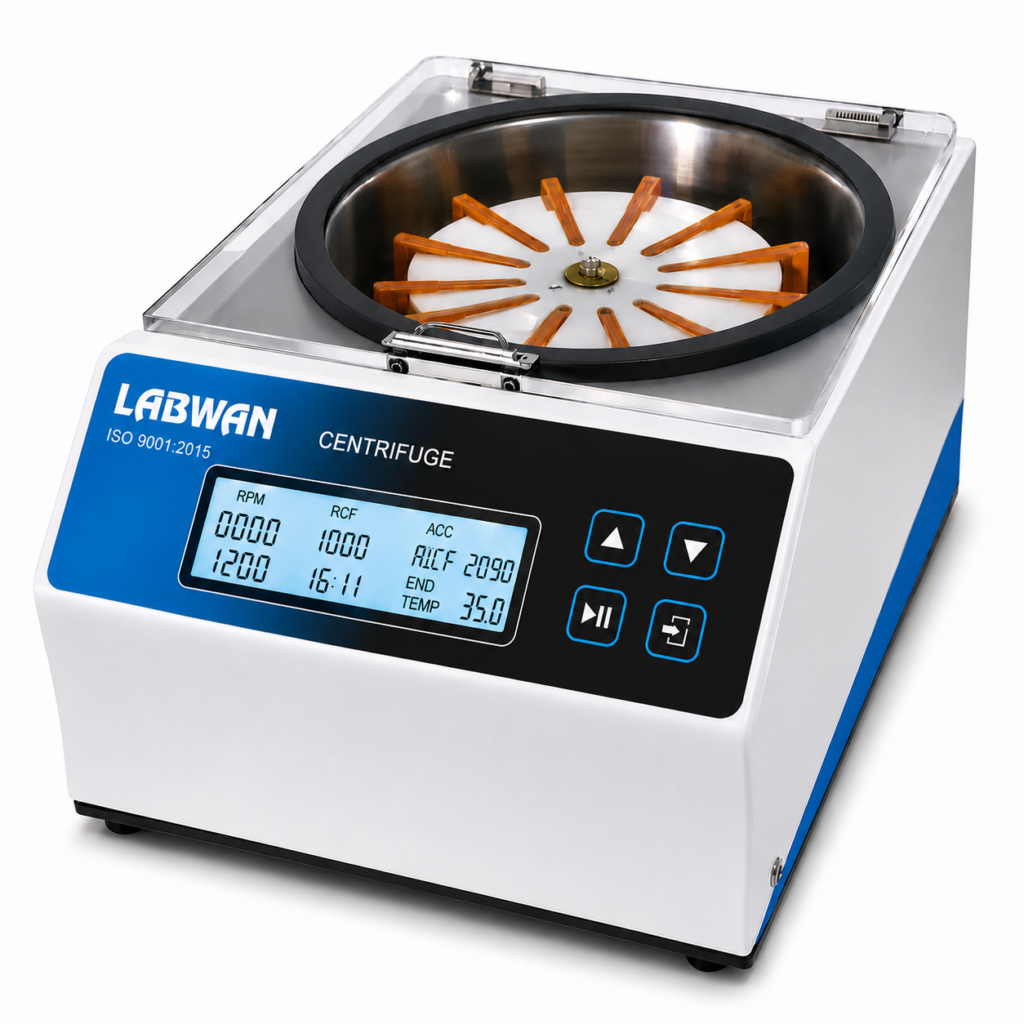

LABWAN Gel Card Centrifuge LGCC – 12
Model LGCC - 12
In Stock
Gel Card Centrifuge designed for centrifugation of GEL cards, with a capacity of up to 12 GEL cards in one batch. It features a microprocessor control with digital RPM and time display, a swing rotor, door and end-of-cycle alarms, and a removable spin head designed to contain spills and facilitate cleaning.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Microprocessor control, digital display which indicates the RPM and time
- Centrifugation of 12 Gel cards (Rotor for 12 Cards)
- Audio visual alarm provided for door open and end of cycle
- User friendly key pad to start and stop
- Light weight and ergonomically designed for ease of operation
- Three layers protection of structure and gentle card centrifugation result
- Speed raising and reducing quickly, operate simply
- Running parameters can be edited
- Brushless DC frequency motor with simpler construction
- Rotor is connected to spindle by specialized taper sleeve
- Loading simple & quick, no direction
Specifications
| Parameter | Value |
|---|---|
| Model No. | LGCC - 12 |
| Rotor Type | Swing Rotor |
| Capacity | 12 Cards |
| Max. Centrifuge speed | 1500 RPM |
| Centrifuge Time Safety | 10 Min. (settable up to 90 min) |
| Alarms Operating | Door (Lid) open alarm, End of cycle. |
| voltage | 220 – 240VAC, 50 Hz, Single Phase |
| Operating Conditions | Temperature: 18 to 30°C |
| Operating Conditions | Maximum Humidity - 80% |
| Operating Conditions | Clean & Dry Environment |
| Operating Conditions | Supply Fluctuations ±10% from the normal voltage |
