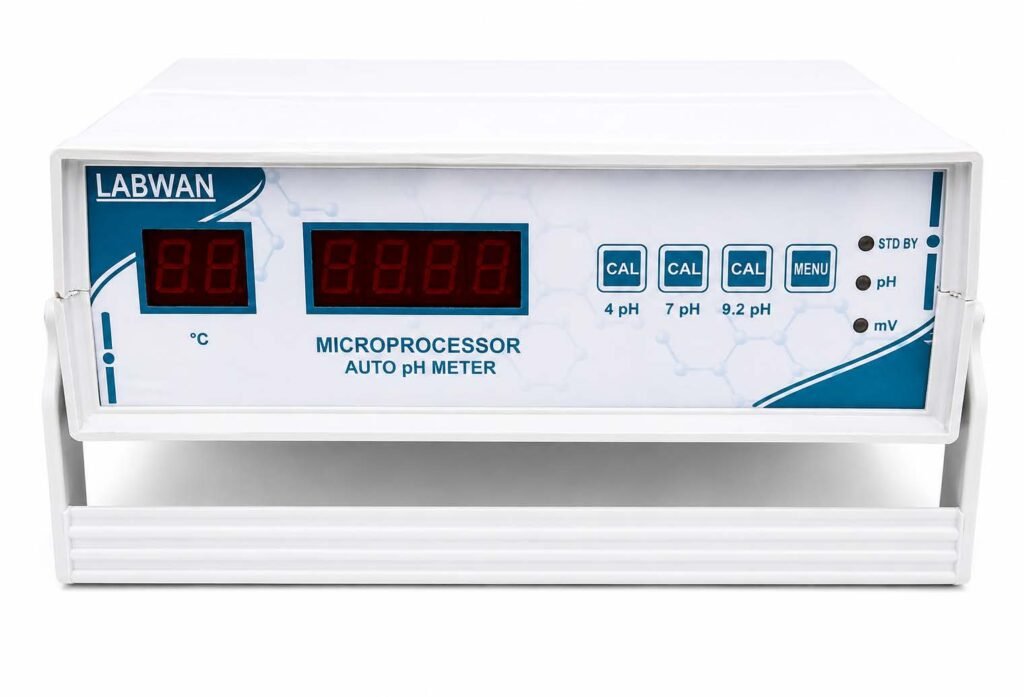

LABWAN Digital pH Meter with ATC PH-10
Model PH-10
In Stock
LABWAN PH-10 Digital pH Meter with ATC is designed for measuring pH and mV, with optional temperature measurement. It features a 3.5-digit LED display with over-range indication, manual and automatic temperature compensation, slope correction, stability control and asymmetry potential adjustment.
ISO 9001 Certified
Service & Support
Key Features
- Digital pH Meter with ATC
- pH & mV Measurement
- Temperature Measurement Optional
- 3.5 Digit LED Display
- Over Range Indication
- Manual & Automatic Temperature Compensation
- Pt100 Temperature Sensor
- Slope Correction
- Stability Control
- Asym POT Adjustment
- Combination pH Electrode
- Two Buffer Solutions
Specifications
| Parameter | Value |
|---|---|
| Function | pH, mV, Temp (Optional) |
| Display | 3.5 digit LED with over range indication |
| Power Supply | 230 V ± 10% 50 Hz. AC |
| pH Range | 0 to 14 pH Continuous |
| pH Resolution | 0.01 pH |
| pH Accuracy | ± 0.02 pH (relative) |
| pH Repeatability | ± 0.01 pH |
| Input Resistance | 10¹⁴ ohms |
| Temperature Compensation | 0 to 100°C manual & automatic with Pt100 from -10 to +130°C |
| Slope Correction | 80% to 120% |
| Stability | ± 0.01 pH after warm up |
| Asym POT adjustment | ± 1 pH |
| mV Range | ± 1999mV |
| mV Resolution | 1mV |
| mV Accuracy | ± 0.1% ± 1 digit |
| Standard Accessories | Combination pH electrode; Two Buffer Solutions; Electrode Stand; Instruction Manual; Temp. probe |
