Magnetic Stirrer with Hot Plate

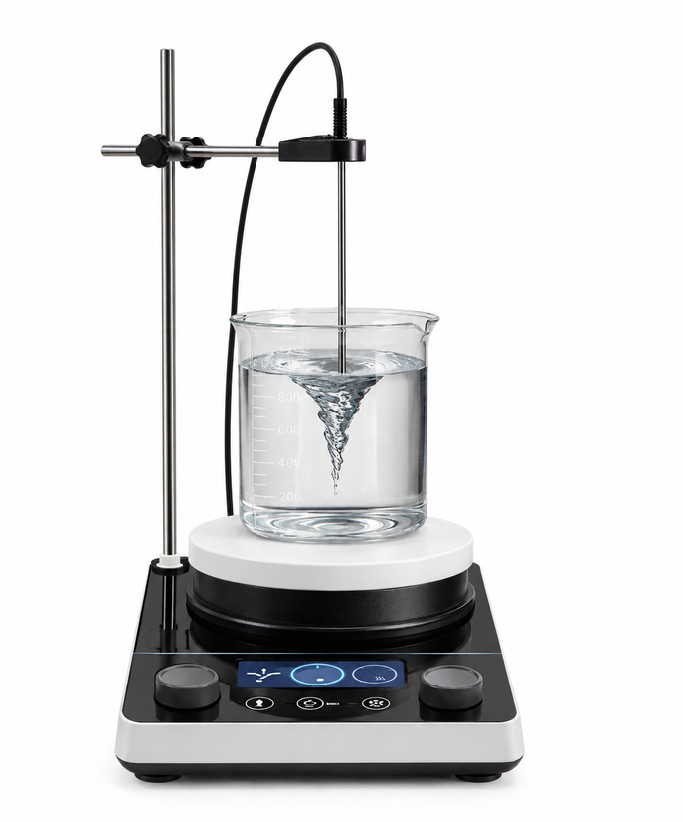

LABWAN Digital Hot Plate Magnetic Stirrer Ceramic Top LHPMS-20L
Model LHPMS-20L
In Stock
Hotplate magnetic stirrer is a laboratory instrument used for liquid mixing, mainly used for stirring or simultaneous heating and stirring of low viscosity liquid or solid-liquid mixture. With the heating temperature control system, the sample temperature can be heated and controlled according to specific experimental requirements, maintaining the temperature conditions required for the experimental conditions, and ensuring that the liquid mixing meets the experimental requirements.
ISO 9001 Certified
Service & Support
Key Features
- Large LCD Display with back light.
- Over temperature alarm.
- Heating & stirring speed is step-less adjusted.
- Real time temperature and speed display.
- Ceramic hot plate with flame protection and excellent chemical resistance.
- Multi-function menu, can choose the stirring direction, use the timer function or choose the heating and operating mode. These options can be set independently throughout the stirring process.
- Two sensors, outside PT 1000 sensor control the liquid temperature, inside sensor control the hot plate temperature.
- Multiple safety function.
Specifications
| PARAMETER | DETAILS |
|---|---|
| Product Name | Digital Hot Plate Magnetic Stirrer Ceramic Top |
| Model Name | LHPMS-20L |
| Make | LABWAN |
| Motor Output | 9W |
| Max Stirring Capacity | 20000 ml |
| Heating Power | 500 W |
| Speed Range | 50 – 2000 rpm |
| Temperature Range | RT +5 – 320°C |
| Time Range | 99 hr 59 min 59 sec/ continuous |
| Stirring Direction | Clockwise / Counterclockwise |
| Surface Material | Ceramic |
| Plate Size | Φ135 mm |
| Protection Grade | IP42 |
| Temperature Sensor | PT1000 |
| Power Supply | 220 V 50 Hz |
| Stir Bar Length | 8 X 30 mm |
| Dimensions & Weight | 160 × 270 × 90, 2 KG |
