Analytical Instruments

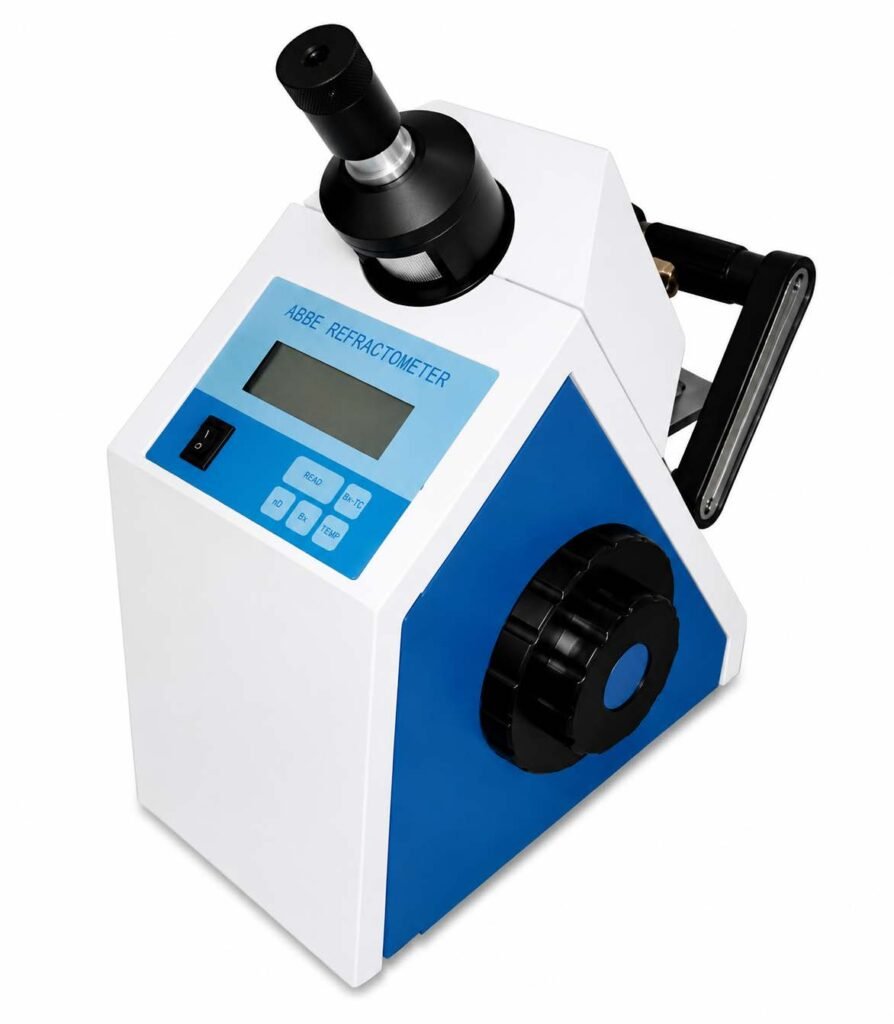

LABWAN Digital ABBE Refractometer With Software LW-R501
Model LW-R501
In Stock
LABWAN LW-R501 Digital ABBE Refractometer With Software is designed for measuring the refractive index of transparent or subtransparent liquid and solid substances and Brix of sugar solutions. It provides automatic correction of temperature effects on Brix, automatic sample temperature display, digital display, RS232 interface and included software.
ISO 9001 Certified
Service & Support
Key Features
- Measurement of Refractive Index (nD)
- Brix Measurement
- Visual Aim and LCD Display
- Automatic Correction of Temperature Effect on Brix
- Hard-Glass Prism
- RS232 Interface
- Automatic Sample Temperature Display
- Software Included
Specifications
| Parameter | Value |
|---|---|
| Measurement Range | nD: 1.30000–1.70000 |
| Brix Range | 0–100% |
| Measuring Accuracy | nD: ±0.0002; Brix: ±0.1% |
| Measuring Resolution (nD) | ±0.0001 |
| Temperature Range | 0–50°C |
| Temperature Resolution | Minimum 0.1°C |
| Display | Digital Display |
| Software | Yes |
| Interface | RS232 |
| Overall Dimensions | 370 mm × 240 mm × 470 mm |
| Weight (Gross) | 12 kg |
| Standard Accessories | Calibration standard; Hex key; 3 lamps, 6.3V, 0.25A; 3 fuses, 1A; RS-232 cable; Software CD and manual; Main lead; Operating manual; Dust cover; Maintenance box |
