Single Stage Water Distillation Unit
LABWAN Bi Distillation Water Unit (single Stage) LSD-4L
Model LSD-4L
In Stock

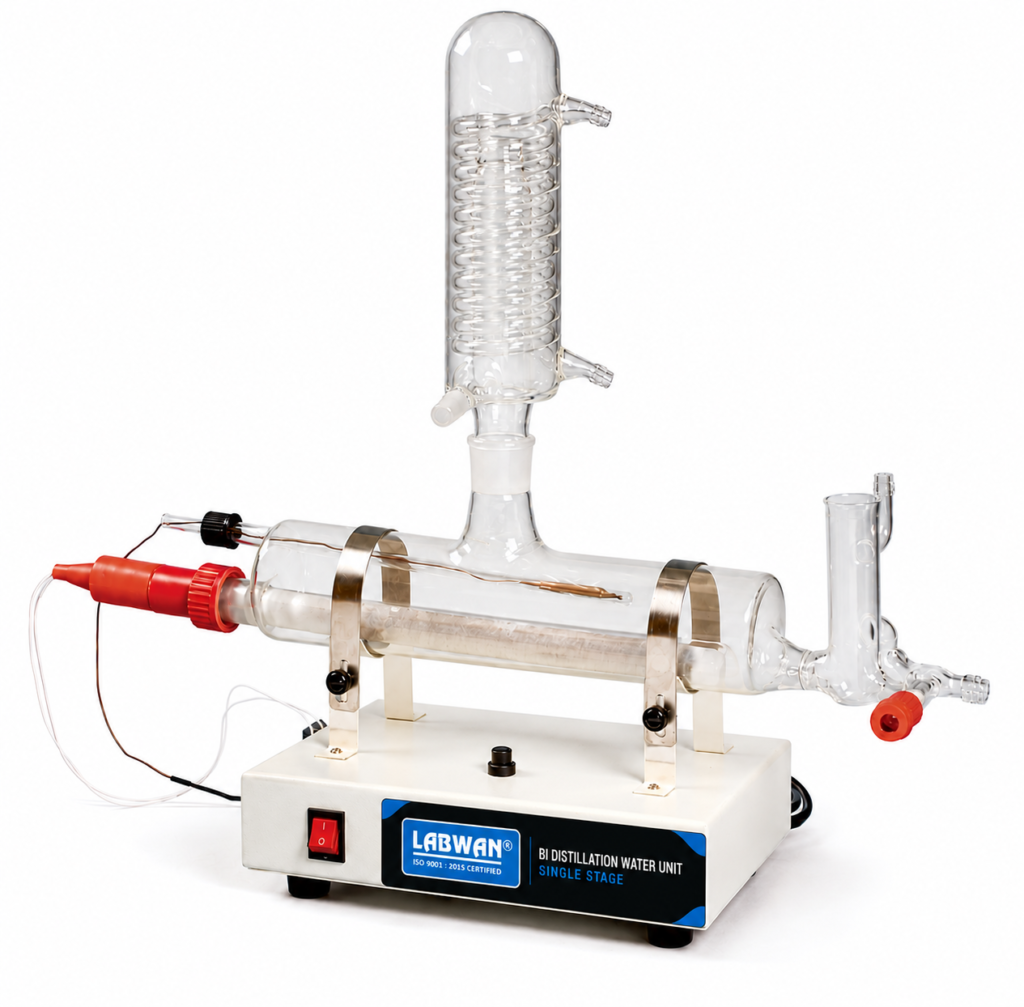

A laboratory water still designed to produce high-purity, pyrogen-free distilled water using a borosilicate glass construction with a horizontal boiler, condenser and silica-sheathed quartz heater.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Replaceable silica-sheathed quartz heater
- Screw-threaded heater connector for convenient fitting and cleaning
- Efficient condenser for controlled distillate temperature
- Powder-coated stand for rust-free operation
- Automatic safety cut-off when the boiler water level falls below the heater
- Recirculation of condenser cooling water into the boiling chamber
- Drain nozzle / Teflon screw cock for cleaning and maintenance
- Built-in PTS pressure-temperature safety switch
- PTS safety cut-off can be reset after restoration of water supply
- Kanthal wire heater wound on a spiral ceramic tube
- No dismantling required for routine cleaning
- Single-phase electrical operation
Specifications
| Parameter | Value |
|---|---|
| Still Type | Single Still |
| Conductivity | 1 to 2.0 µs/cm |
| Distillate Quality | Pyrogen Free |
| Output Capacity (Approx.) | 4.0 ltr/hr |
| Cooling Water Consumption (Approx.) | 120 ltr/hr |
| Power Rating Total | 3.0 Kw |
| Packing Dimension W*D*H(cm) | 66*62*44 |
| Gross Weight | 15 kg |
| Electrical Power | 220/240 V, 50/60Hz, Single Phase Supply |
