Multi Parameter Tester

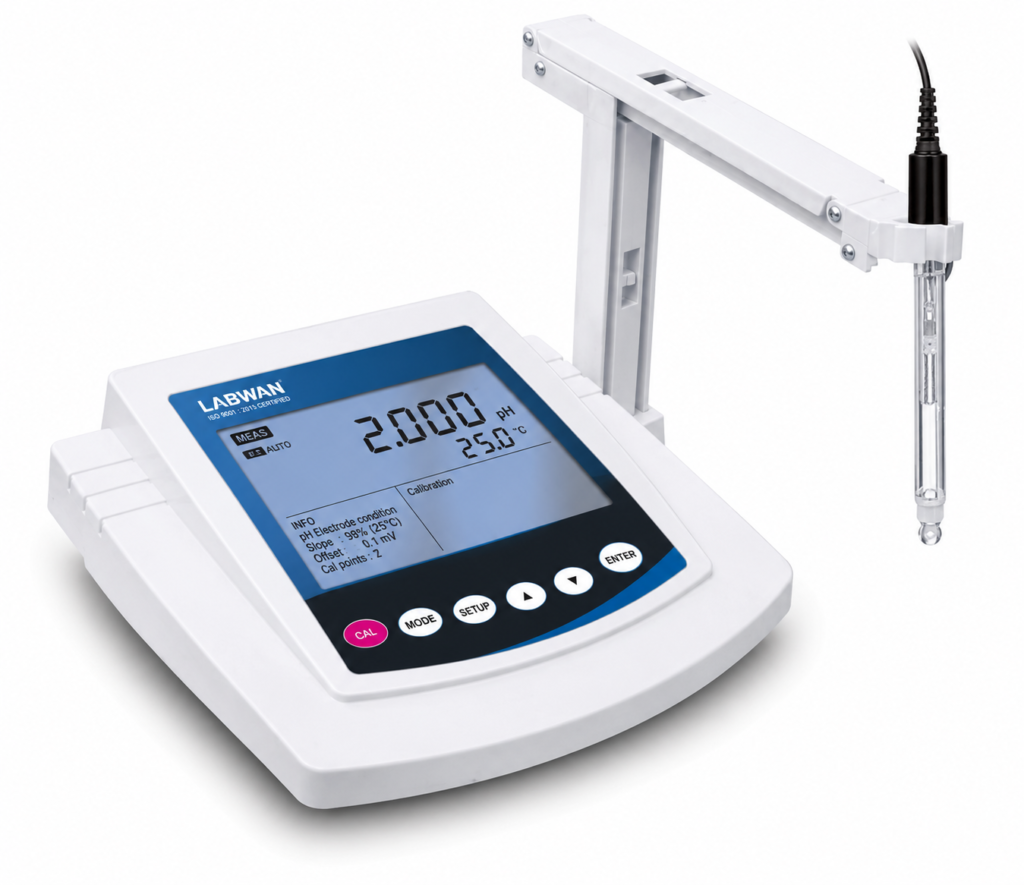

LABWAN Benchtop pH, Ion, ORP & Temperature Meter LPIOT-500
Model LPIOT-500
In Stock
A microprocessor-based benchtop meter for measuring pH, ion concentration, ORP, and temperature. It supports up to 5-point pH and ion calibration, automatic temperature compensation, electrode slope display, data memory, calibration reminders, and selectable measurement settings.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- 4-in-1 measurement of pH, ion concentration, ORP, and temperature.
- Up to 5-point automatic pH calibration.
- 2- to 5-point ion calibration.
- Automatic electrode slope calculation and display.
- Direct ion concentration readout.
- Automatic temperature compensation.
- Automatic endpoint function.
- Built-in real-time clock for stored data.
- Memory for up to 500 readings.
- Selectable stability conditions and temperature units.
- Calibration reminder function.
Specifications
| Parameter | Value |
|---|---|
| Model | LPH-500 |
| Make | LABWAN |
| pH Range | -2.000~20.000 pH |
| pH Resolution | 0.001, 0.01, 0.1 pH Selectable |
| pH Accuracy & Calibration Points | ±0.002 pH & up to 5 points |
| pH Buffer Option | USA (pH 1.68, 4.01, 7.00, 10.01, 12.45); NIST (pH 1.68/4.01/6.86/9.18/12.45); DIN (pH 1.09, 4.65, 6.79, 9.23, 12.75) or user defined |
| ION Concentration Range | 0.001~19999 ppm, mol/L (selectable depending on range of ISE) |
| ION Concentration Accuracy | ±0.5% F.S (monovalent), ±1% F.S (divalent) |
| ION Resolution | 0.001, 0.01, 0.1, 1 |
| ION Calibration Points | up to 5 points |
| ORP (mV) Range/Calibration | 0~±1999.9 mV / 1 point |
| ORP Resolution & Accuracy | 0.1/1mV Selectable & ±0.2 mV |
| Measuring Mode | Absolute mV or Relative mV |
| Temperature Range & Resolution | ATC 0~105°C, /32~212°F & 0.1°C |
| Temperature Accuracy | ±0.5°C, ±0.9°F |
| Memory | 500 data sets with date & time |
| Stability Condition | Low or High, selectable |
| Calibration Reminder | 1 to 31 days or OFF |
| Power Source | DC 5V adapter, AC 220V |
| Dimensions | 210 x 188 x 60 mm & 1.2kg |
| Standard Accessories | pH Electrode; Temp. Probe; pH Buffer; Electrode Stand; Adapter; Instruction Manual |
