Video Borescope

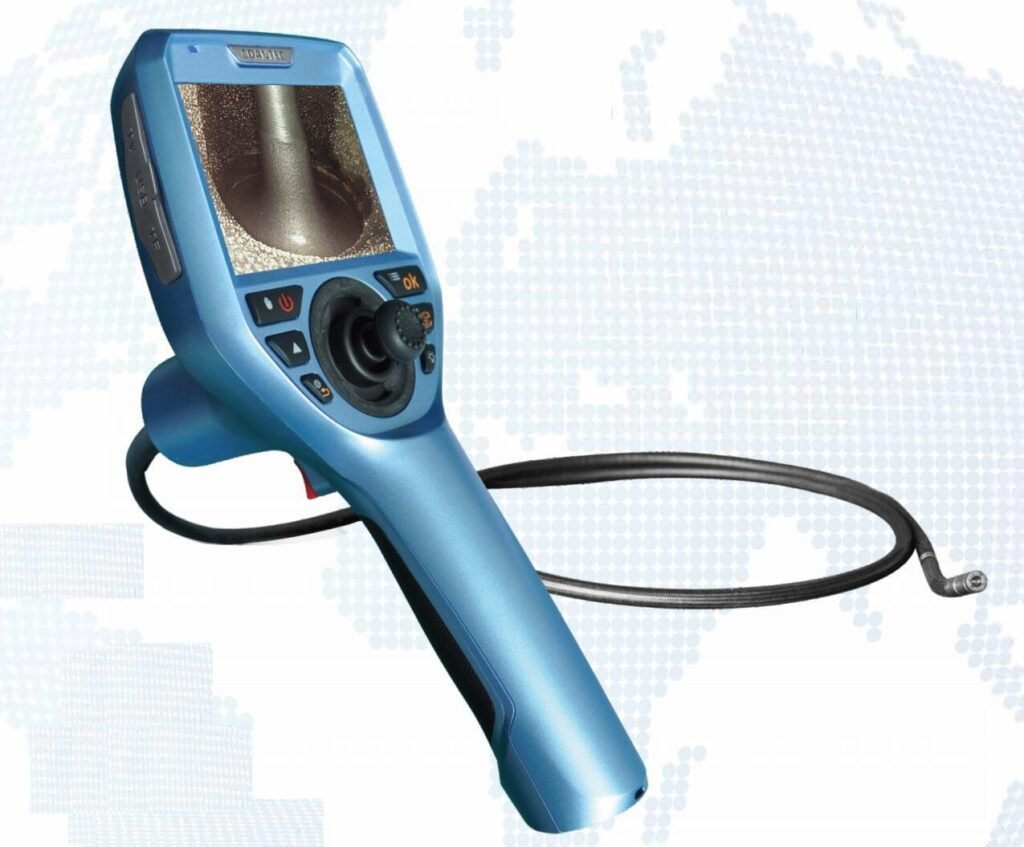

LABWAN Automotive High-Resolution Video Endoscope LVE-20
Model LVE-20
In Stock
The LABWAN LVE-20 Automotive High-Resolution Video Endoscope is a handheld inspection system designed for detailed visual inspection of automotive engines and other difficult-to-access areas. It combines a high-definition camera, mechanically articulating probe, oil- and corrosion-resistant insertion tube, daylight-visible TFT display, image/video recording, HDMI output, and optional probe cooling for high-temperature inspection.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Ultra-high-definition camera for still images and video
- Mechanical 360° all-way probe articulation
- Large 210° bending angle for direct valve inspection
- Oil-resistant and corrosion-resistant insertion tube
- Tungsten-alloy-wire construction with titanium-alloy probe protection
- High-temperature probe capability with optional cooling system
- HDMI output for connection to a large external display
- Automatic white balance and image processing
- Front LED illumination with adjustable brightness
- Intelligent image and video recording
- One-hand handheld operation
- Lightweight and portable design
- Replaceable consumable tungsten insertion tubes
- Multiple-language menu interface
Specifications
| Specification | Value |
|---|---|
| Integrated Design | Probe, Screen, Insert Tube, Handle, Battery and other integrated handheld design |
| Compatibility | Replicable consumable tungsten insertion tubes |
| Tube Length | 1 m |
| Probe Control | Mechanical 360° all-way articulation |
| Bending Angle | Maximum 210° |
| Illumination Type | Front LED light guiding; LED life ≥30,000 hours |
| Illuminance | Maximum 20,000 lx |
| Brightness Level | Manual 7-level adjustment |
| White Balance | Automatic white balance, central focus photometry and image processing technology to prevent surface exposure of bright objects |
| Display | 3.5 inch TFT daylight display, visible under sunlight |
| Image Resolution | 960 × 720 |
| Photo / Video | Yes |
| Document Format | Image: BMP / JPEG; Video: MP4 |
| Image Preview | List preview mode, full-screen view optional / time watermarking |
| Memory | Standard 8G capacity TF card, maximum support 32G |
| Equipment Durability Protection Device | Buffer protection device for connecting main engine and wear-resistant pipe |
| Insertion Tube | Oil resistant and anti-corrosion |
| Menu Language | Simplified Chinese, Traditional Chinese, English, Japanese, Korean, French, German, Portuguese, Spanish, Russian |
| Probe Diameter | φ6 ± 0.1 mm |
| Camera Pixels | 690,000 pixels |
| Digital Zoom | Real-time 4× zoom, 8× partial zoom when playback |
| Probe Material | Titanium alloy protective shell |
| Depth of Field | 25–100 mm |
| Field of View | 85° |
| Visible Direction | Front |
| Host Weight | ≤0.45 kg (with battery) |
| Host Waterproof | IP55 |
| Probe Waterproof | IP67 |
| Output Port | HDMI |
| Battery | 18650 rechargeable lithium batteries, real-time online charging |
| Battery Voltage | DC 4.2 V |
| System Operating Time | ≥4 hours (1 battery) |
| System Operating Temperature | -10 ~ 50°C |
| Tip Operating Temperature | -20 ~ 60°C |
| Storage Temperature | -20 ~ 60°C |
| Relative Humidity | 15% ~ 90% |
| STANDARD ACEESSORIES | |
| Standard Configuration | LWAE-20 Video-scope |
| Instrument Case | Included |
| Card Reader | Included |
| TF Card | 8G |
| Battery | Included |
| User Manual | Included |
