Polymer Press

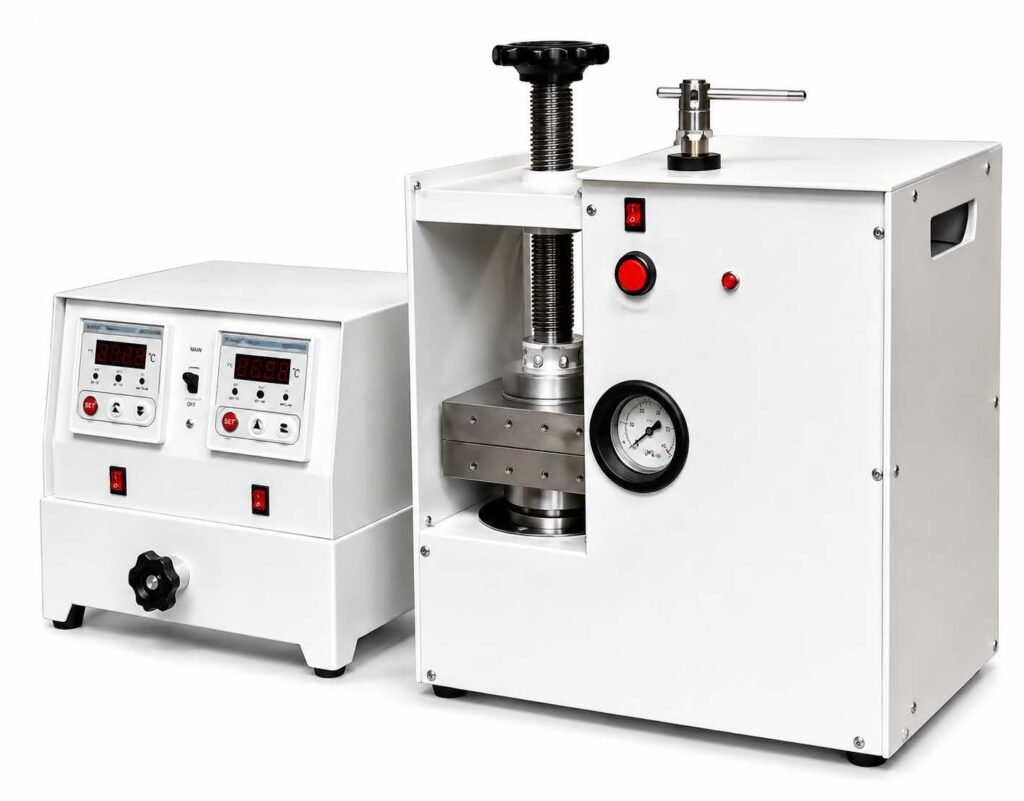

LABWAN Automatic Polymer Press LW-A-15
Model LW-A-15
In Stock
LABWAN Automatic Polymer Press is designed for preparation of cast polymer films and sheets from materials such as LDPE, HDPE, PP and Polystyrene by heating the sample and simultaneously applying pressure. It features adjustable temperature control up to 350°C, PID temperature control and water circulation for cooling.
ISO 9001 Certified
Service & Support
Key Features
- Maximum pressure of 15 Ton
- Adjustable temperature from Ambient to 350°C
- PID temperature controller
- Water circulation arrangement for cooling
- Suitable for polymer film and sheet preparation
- Compact laboratory design
- 230V, 50Hz single-phase power
Specifications
| Parameter | Value |
|---|---|
| Maximum Pressure | 15 Ton |
| Temperature | Ambient to 350°C (Adjustable) |
| Temperature Controller | PID Controller |
| Cooling | Arrangement for water circulation |
| Overall Dimension | 690 × 270 × 350 mm (approx.) |
| Weight | 65 Kg (approx.) |
| Power | 230V 50Hz Single Phase |
