Density Meters
LABWAN Automatic Density Meter LADM-03
Model LADM-03
In Stock

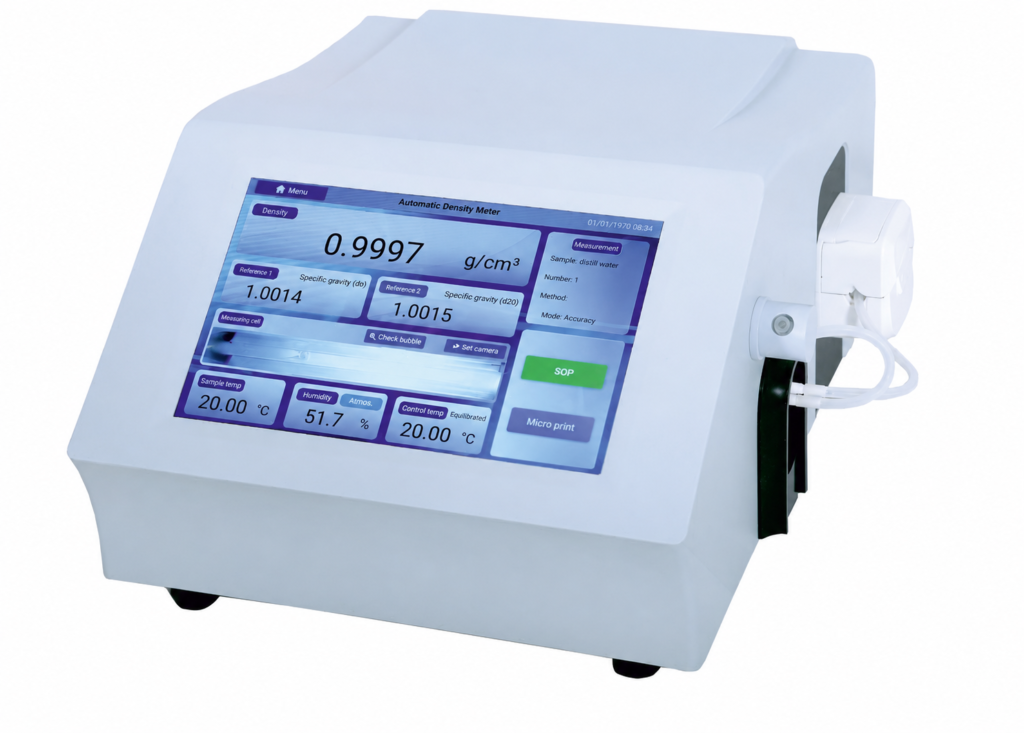

The LABWAN LADM-03 Automatic Density Meter is designed for rapid and accurate measurement of liquid density using a quartz glass U-shaped vibrating tube and photoelectric detection method. It requires only 2–3 ml sample volume per measurement and incorporates built-in Peltier temperature control, a high-definition camera, touchscreen operation, automatic/manual sampling, and electronic data storage.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Automatic density measurement of liquids
- Quartz glass U-shaped tube
- Photoelectric detection method
- High-definition camera for detection
- Minimum sample requirement of 2–3 ml per measurement
- Built-in Peltier temperature control
- Compatible with manual and automatic sampling
- 10.1" touchscreen display
- Android operating system
- 1080P high-definition camera for observing sample injection
- Bubble detection for identifying bubbles or impurities
- Measurement results can be saved as PDF reports
- USB data export
- Batch data collection and storage
- RS232C and USB communication
- Air pump for drying and cleaning
- Optional thermal printer
- U-tube vibration measurement principle
Specifications
| Specification | Value |
|---|---|
| Density Measuring Range | 0.0000 to 3.0000 g/cm³ |
| Density Resolution | 0.0001 g/cm³ |
| Density Accuracy | ±0.0005 g/cm³ |
| Density Repeatability | ±0.0002 g/cm³ |
| Temperature Control Range | 5°C ~ 50°C |
| Temperature Repeatability | ±0.05°C |
| Temperature Accuracy | ±0.1°C |
| Communication Port | RS232C, USB |
| Measurement Units | g/cm³, kg/cm³ |
| Audit Trial, User Management | NA |
| Temperature Control | Peltier (In-Built) |
| Temperature Resolution | 0.01°C |
| Display | 10.1" Touch Screen |
| Observation | 1080P HD Camera |
| Calibration | Dry Air / Distilled Water |
| Data Storage | 128GB |
| Method Management | 200 Groups |
| Measurement Records | 2,00,000 Groups |
| Operating System | Android |
| Report | PDF / Excel |
| Sampling | Manual / Auto |
| Power | 120W |
| Power Supply | AC 220V, 50/60Hz |
| Dimension (L×W×H) | 730 × 480 × 420 mm |
| Gross Weight | 22 kg |
| Standard Accessories | Main Instrument, Silicon Gel Filter, Waster Water Bole, Inlet & Outlet Tube, Power Adaptor, Instruction manual, Test Certificate |
