Spectrophotometer

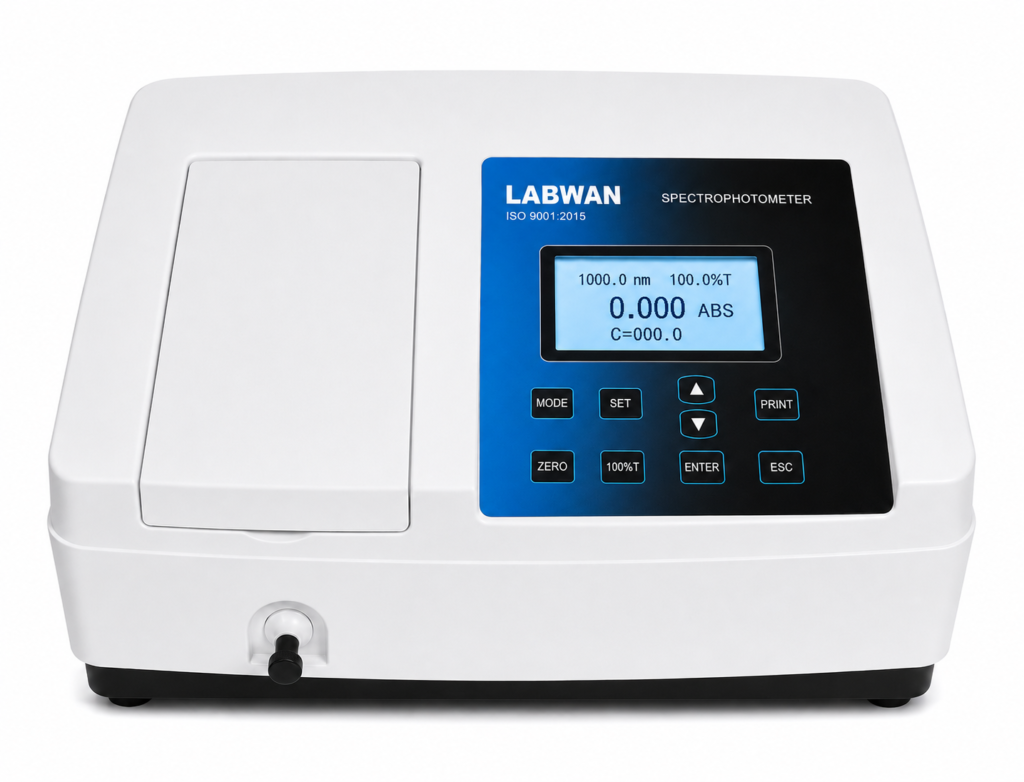

LABWAN Advanced Microprocessor Single Beam UV-VIS Spectrophotometer with Graphical Scanning LAMSS-715G
Model LAMSS-715G
In Stock
The LAMSS-715G is an advanced single-beam microprocessor UV-VIS spectrophotometer with graphical scanning software. It is designed for applications including pharmaceutical, environmental, food, agricultural, water and wastewater laboratories, as well as teaching and industrial applications.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Large 128 × 64 dots LCD screen
- Displays and saves up to 50 groups of data, 5 groups per screen
- Data can be restored after a sudden power cut
- Automatic wavelength setting
- Tungsten and deuterium lamps can be switched on/off individually to extend lamp life
- Automatic wavelength calibration
- Automatic dark-current measurement
- Graphical scanning software
- Continuous operation design
- Reliable and low-cost operation
Specifications
| Parameter | Value |
|---|---|
| Optional System | Single - Beam, Grating |
| Wavelength Range | 190 - 1000nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.3%T |
| Photometric Range | -0.3-3A, 0-200%T |
| Stray Light | <0.3%T |
| Stability | ±0.002A/h @500nm |
| Display | 128 * 64 Dots LCD |
| Detector | Silicon Photodiode |
| Standard Cell Holder | 4-position 10mm cell changer |
| Light Source | Tungsten & Deuterium lamp |
| Output | USB port & Parallel port (printer) |
| Power Requirements | AC 85 ~ 250V |
| Dimension | 420x280x180mm |
| Weight | 20Kg |
| STANDARD CONFIGURATION | |
| Main Set | 1 No. |
| USB Cable | 1 No. |
| Accessory kit including 4 glass cell (1 cm) | 1 No. |
| 2 Quartz Cell (1 cm) | 1 No. |
| Operating Manual | 1 No. |
| Software Manual | 1 No. |
| Dust Cover | 1 No. |
| Software CD | 1 No. |
| Power Cable | 1 No. |
