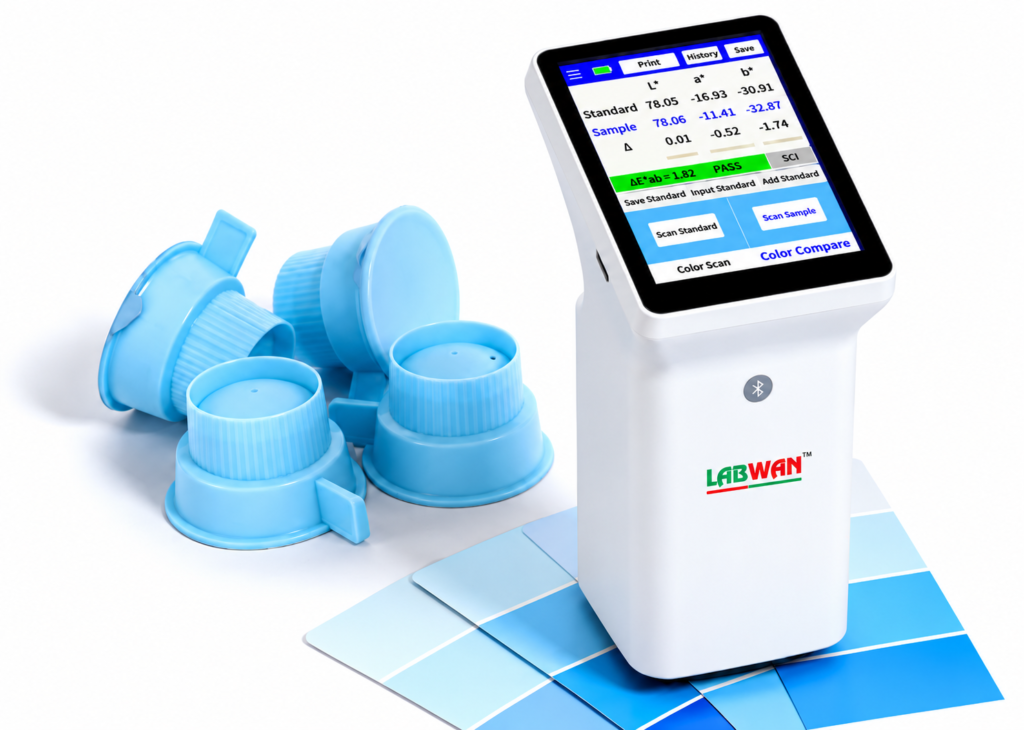

LABWAN 45/0 Colorimeter with Touch Screen LWCL-45
Model LWCL-45
In Stock
LABWAN handheld multifunctional colorimeter designed with a 45/0 annular illumination geometry. It uses a 3.5-inch IPS capacitive touchscreen to provide an excellent operating experience.
The color analyzer integrates multiple color charts and can quickly match the three closest color codes. It also features a color comparison function and supports various standard color addition methods. The color difference threshold can be set, and the color difference formula can be flexibly selected for rapid QC testing.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Touchscreen Operation: 3.5-inch IPS capacitive color touchscreen with a 30° tilted viewing angle.
- Fast Measurement: Color results in approximately 1 second.
- Color Matching: Identifies the three closest color codes with up to 90% accuracy.
- CIE Lab Values: Displays color deviations across L*, a*, and b* channels.
- Large Data Storage: Supports customized color databases and industry-specific color cards.
- Multiple Comparison Methods: Compare colors using manually entered values or stored color charts.
- Data Sharing: Import/export color data through mobile apps or PC software.
- Quality Control Mode: Set color-difference thresholds with pass/fail results and ΔL, Δa, and Δb values.
- High Repeatability: Repeatability of ΔE*ab ≤ 0.03 and stated measurement accuracy of 0.01.
- Multiple Color Spaces: Supports Lab, RGB, CMYK, and various color-difference formulas.
- Spectral Reflectance Curves: Provides curves for analyzing sample color characteristics.
- PC & Mobile Software: Compatible with Android, iOS, and Windows for color data management and report generation.
- Measurement Locating Plate: Helps ensure accurate sample positioning.
- Built-in Calibration: Integrated white calibration board in the bottom cap.
- Compact & Portable: Lightweight design for convenient handling and transport.
- Full-Spectrum LED Source: Provides spectral distribution across the visible range.
- 45°/0° Optical Geometry: Supports standardized color measurement under 45° illumination and 0° viewing.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 45/0 Colorimeter with Touch Screen |
| Model | LWCL-45 |
| Illumination geometry | 45/0 (45° annular illumination, 0° viewing angle) |
| Illumination light source | Full spectrum LED light source |
| Spectral Range | 400-700nm |
| Spectral Interval | 10nm |
| Measuring aperture | 8mm |
| Measurement conditions | Light source D65, field of view 10° |
| Measuring time | About 1s |
| Color space | CIE Lab, LCh, Luv, Yxy, CMYK, RGB, YI-98, WI-98, WI-Ganz, WI-Hunter, WI-R457, HSL, HSV, ITA, Spectra |
| Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, ΔE*cmc(1.4:1) |
| Repeatability | Standard deviation ΔE*ab ≤ 0.03 (Measurement condition: the average value of 30 measurements on the white tile at an interval of 3s after calibration) |
| Dimension | 86mm×62.5mm×158mm |
| Weight | About 225g |
| Power supply | Rechargeable lithium battery 3.7V@4000mAh, can measure 10,000 times continuously under full charge |
| Display | 480×320 dot matrix IPS color screen |
| Language | Simplified Chinese, English, Turkey |
| Charging port | USB (Type-C) |
| Operating temperature range | 0~45°C, 0~85%RH (no condensation) |
| Storage temperature range | -25~55°C, 0~85%RH (no condensation) |
