Video Borescope

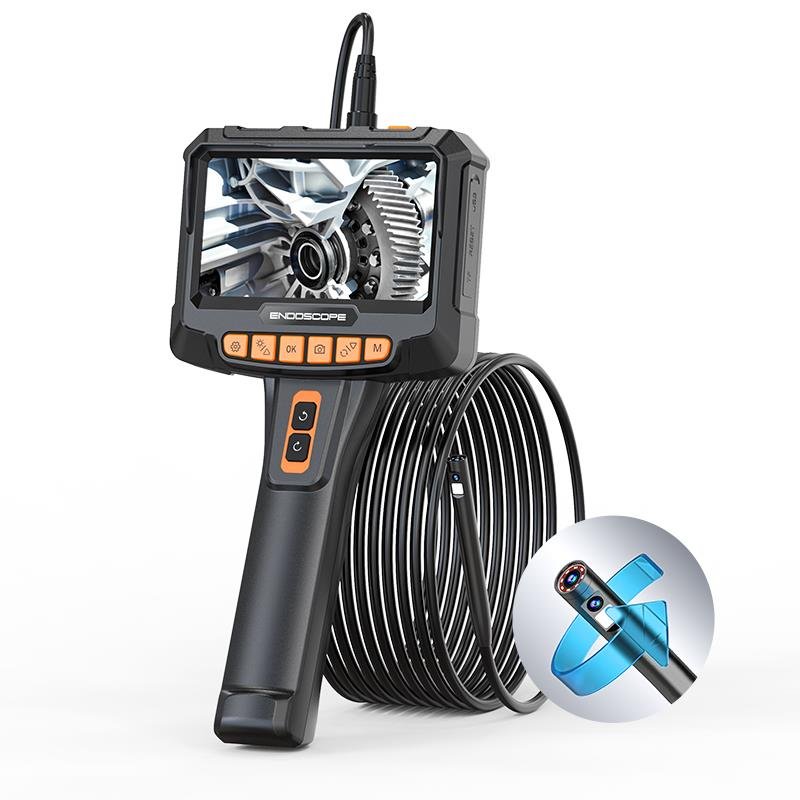

LABWAN 360° Dual Lens Rotating Video Borescope LVB-01
Model LVB-01
In Stock
The LABWAN LVB-01 360° Dual Lens Rotating Video Borescope is a portable industrial inspection camera equipped with a 5-inch HD IPS screen, dual lens, 360° motor rotation and IP67 waterproof camera. Its semi-rigid probe is designed to retain its shape while allowing inspection through narrow, curved and difficult-to-access areas. The dual-lens system provides an overall 720° viewing capability, making it suitable for demanding visual inspection applications.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- 360° lens rotation
- Dual-lens camera system
- Overall 720° viewing capability
- 1080P dual lens
- 5-inch IPS screen
- 2MP monitor
- IP67 waterproof camera
- Wear-resistant metal camera
- Semi-rigid probe tube
- High-temperature protection
- 8 mm camera diameter
- Intelligent snapping and recording
- 16 GB SD card supplied
- Supports up to 64 GB SD card
- Adjustable LED lighting
- 1.0× / 1.5× / 2.0× zoom
- 2000 mAh lithium battery
- 3–4 hours working time
- Handheld and portable design
- Suitable for narrow, curved and corrosive environments
Specifications
| Specification | Value |
|---|---|
| Monitor Size | 5 Inches IPS Screen (2MP) |
| Sensor (CCD/CMOS) Size | 1/16 inch |
| Resolution – Image | 1920 × 1080 (JPG) |
| Resolution – Video | 1280 × 720 (AVI) |
| Diameter of Camera | 8 mm |
| Probe Length | 1 Meter / 5 Meters / 10 Meters |
| Material of Probe | High Temperature With Smart Protection, Semi-Rigid Tube |
| Material of Camera | Wear Resistant Metal Camera, IP67 (Waterproof) |
| Depth of Field | A: 2–10 cm, B: 2–5 cm |
| Frame Rate / Viewing Angle | 20 FPS / 65–85° |
| Light | 8 + 1 Adjustable LED Lights |
| Zoom | 1.0× / 1.5× / 2.0× |
| Feature | 360° Motor Rotation & Dual Lens |
| SD Card Capacity | 16 GB (Standard), Maximum 64 GB with USB-C |
| Battery Type | 2000 mAh Lithium Battery |
| Battery Working Time | 3–4 Working Hours |
| ADDITIONAL APPLICATIONS | |
| Focal Length – Main Camera | 20–100 mm |
| Focal Length – Second Camera | 20–50 mm |
| Viewing Angle | 65–85° |
| Cable Diameter | 8 mm |
| Cable Type | Semi-Rigid |
| Waterproof Rating | IP67 |
| Lens Rotation | 360° |
| Overall Viewing | 720° |
