Video Borescope

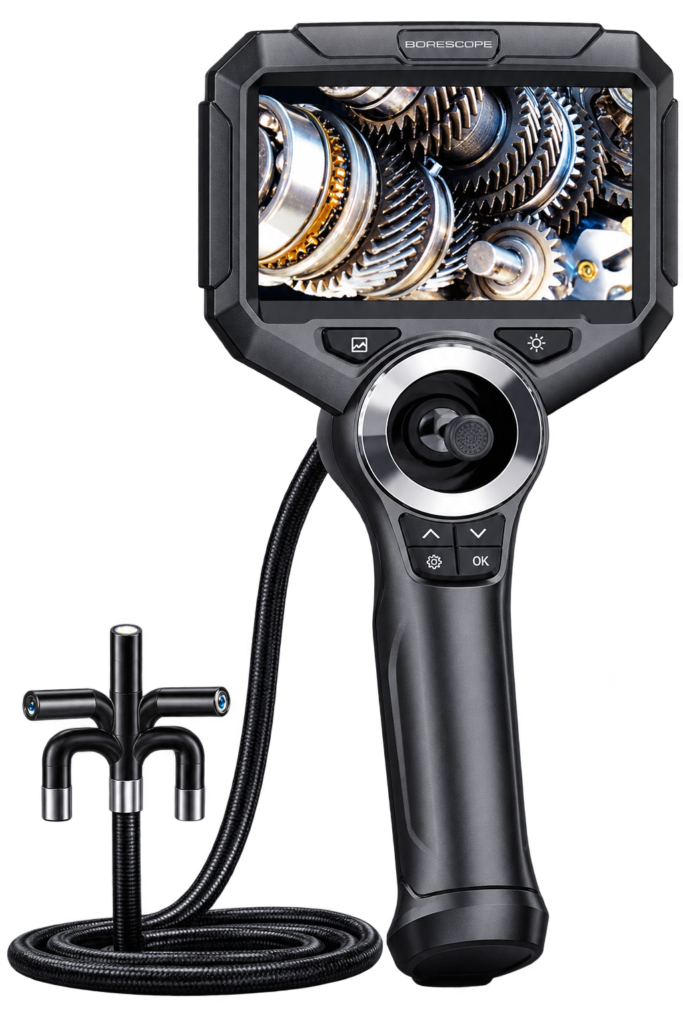

LABWAN 360° Articulating Video Borescope LVB-01J
Model LVB-01J
In Stock
The LABWAN LVB-01J 360° Articulating Video Borescope is a handheld industrial inspection camera with a 5-inch HD IPS screen, 6 mm articulating camera, 4-way tip articulation and up to 720° steering angle. Its semi-rigid tungsten-wire braided probe is designed for inspection through narrow, curved and difficult-to-access areas, with IP67 waterproof protection and high-temperature protection.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- 360° articulating inspection capability
- 4-way tip articulation
- Steering angle up to 720°
- 5-inch IPS screen
- 2MP display
- 6 mm camera diameter
- 6 LED lights
- 1080P image resolution
- IP67 waterproof camera/probe system
- Semi-rigid tungsten-wire braided tube
- High-temperature protection
- Wear-resistant metal camera tube
- Intelligent image snapping and video recording
- 16 GB SD card supplied
- Supports up to 64 GB SD card
- Handheld and portable design
- Over-temperature alarm
- Short-circuit protection
- Over-current protection
- Over-voltage protection
- Anti-jamming protection
- Antistatic protection
- Over-power protection
- Low-ripple protection
Specifications
| Specification | Value |
|---|---|
| Monitor Size | 5 Inches IPS Screen (2MP) |
| Sensor (CCD/CMOS) Size | 1/16 inch |
| Resolution – Image | 1920 × 1080 (JPG) |
| Resolution – Video | 1280 × 720 (AVI) |
| Diameter of Camera | 6 mm (6 LED's) |
| Probe Length | 1 Meter (3.28 ft) |
| Material of Probe | High Temperature With Smart Protection, Semi-Rigid Tungsten Wire Braided Tube |
| Material of Camera | Wear Resistant Metal Camera Tube |
| Depth of Field | 2–10 cm |
| Viewing Angle | 70° |
| Tip Articulation | 4-Way Articulated |
| Steering Angle | Up to 720° |
| Bending Radius | 18 mm |
| SD Card Capacity | 16 GB (Standard), Maximum 64 GB with USB-C |
| Waterproof Standard | IP67 |
| Battery Type | 2000 mAh Lithium Battery (3–4 Working Hours) |
| ADDITIONAL SPECIFICATION | |
| Focal Length | 20–100 mm |
| Probe Type | Semi-Rigid Cable |
| Underwater Operation | 3.28 ft (1 metre) |
| Universal Rotation / Articulation | Overall 720° |
| Probe Construction | Tungsten Wire Braided Tube |
