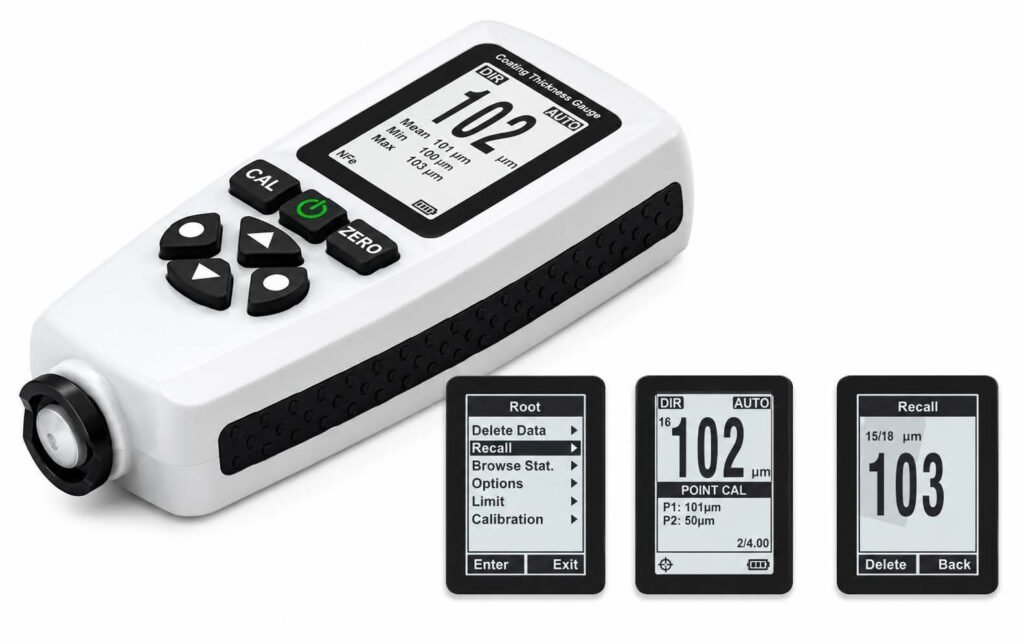

LABWAN Dry Film Thickness Gauge LDFT-222

Model LDFT-222 In Stock

The LDFT-222 Coating Thickness Gauge is a portable, high-precision, non-destructive coating thickness measuring instrument designed for accurate measurement on ferrous and non-ferrous substrates. It features magnetic induction and eddy current measuring principles, multiple calibration modes, statistical analysis, USB data transfer, and high/low alarm functions, making it ideal for quality control, automotive inspection, electroplating, and industrial coating applications.

Get Quote Catalog Not Available

ISO 9001 Certified Service & Support

Key Features

128 × 128 dot matrix LCD display
Standard menu operation
Single and continuous measurement modes
Direct (DIR) and General (GEN) measurement groups
Zero-point and one to four-point calibration
Reading recall and delete function
Built-in statistical analysis
Automatic probe selection (Auto / Magnetic / Eddy Current)
High and low alarm settings
USB interface for data download
Automatic power-off function

Specifications

Specification	Value
Measuring Principle	Magnetic Induction (F); Eddy Currents (NF)
Measuring Range	0–2000 μm (0–78.7 mils)
Accuracy	±(2.5% + 1 μm); ±(2.5% + 0.039 mils)
Resolution	0–99.9 μm: 0.1 μm; 100–999 μm: 1 μm; >1000 μm: 0.01 mm
Calibration	Zero Point and One to Four Point Calibration
Data Groups	One Direct Group; Four General Groups
Statistics	Number of Readings, Mean, Minimum, Maximum, Standard Deviation
Measurement Units	μm, mm, mils
Alarm	High/Low Alarm with LCD Alarm Icon
Minimum Convex Curvature Radius	5 mm
Minimum Concave Curvature Radius	25 mm
Minimum Measuring Area	Diameter 20 mm
Minimum Substrate Thickness	0.2 mm (F); 0.2 mm (NF)
Maximum Measuring Rate	2 Readings/s
Computer Interface	USB Data Download
Power Supply	2 × 1.5 V AAA Batteries
Operating Environment	Temperature: 0–50°C; Humidity: 20–90% RH
Storage Environment	Temperature: -10–60°C
Standards	CE, ROHS, FCC, ISO 2178, ISO 2360
Dimensions	110 × 53 × 24 mm
Case Material	ABS
Weight	92 g
