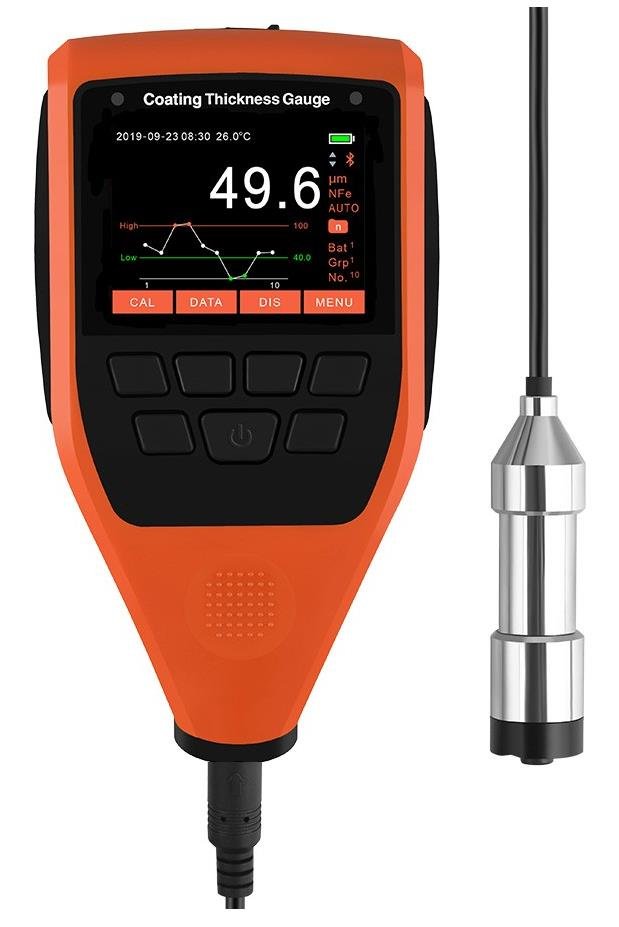

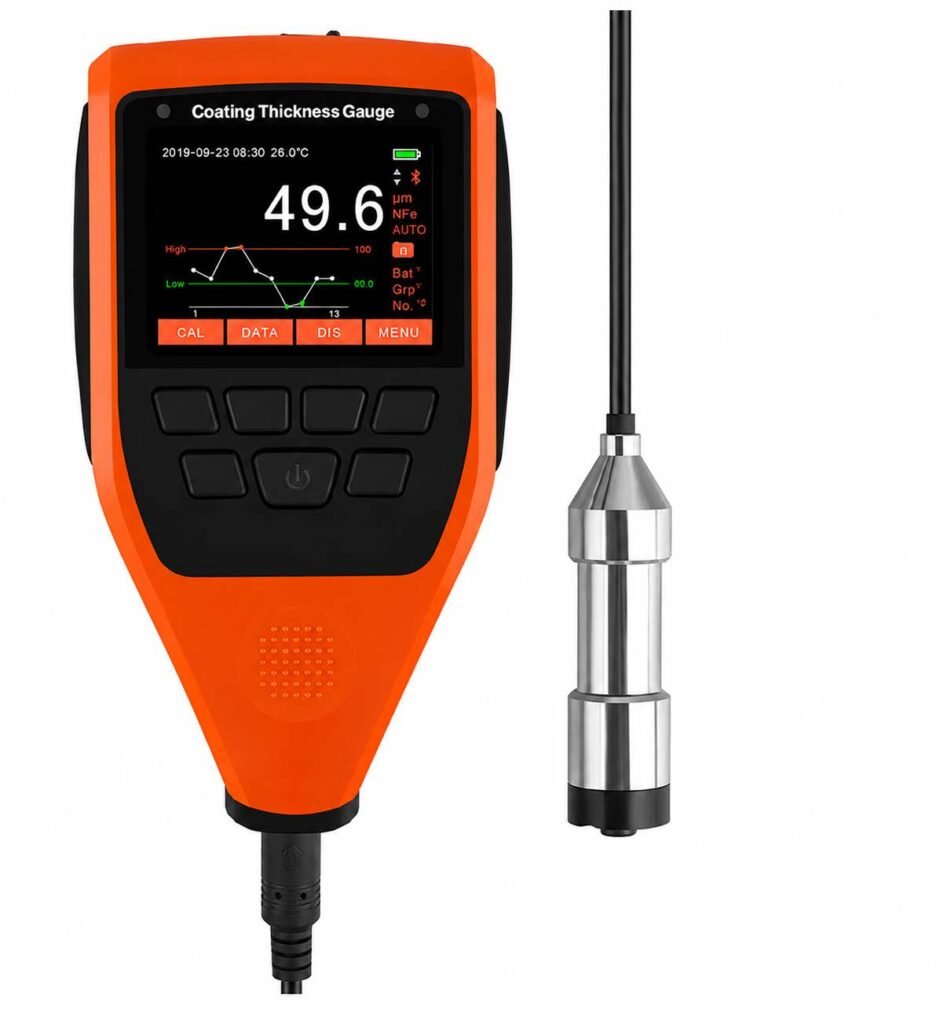

LABWAN Dry Film Thickness Gauge LDFT-500

Model LDFT-500 In Stock

The LDFT-500 Coating Thickness Gauge is a high-precision, non-destructive coating thickness measuring instrument featuring a 2.4-inch colour display, Bluetooth connectivity, and APP support. Utilizing magnetic induction and eddy current measuring principles, it accurately measures coatings on ferrous and non-ferrous substrates, making it ideal for automotive inspection, quality control, manufacturing, and industrial applications.

Get Quote Catalog Not Available

ISO 9001 Certified Service & Support

Key Features

2.4 inch colour screen
Bluetooth and APP function
Car mode and General mode
Measuring range: 0–2000 μm (custom ranges available)
High accuracy: ±2%
High-speed measurement: 2 readings/second
Non-destructive coating thickness measurement
Suitable for ferrous and non-ferrous substrates

Specifications

Specification	Value
Probe Type	Internal Probe
Measuring Principle	Fe: Magnetic Induction; NFe: Eddy Currents
Measuring Range	0–2000 μm
Accuracy	±(2% + 1 μm)
Resolution	0.1 μm (0–100 μm); 1 μm (>100 μm)
Measurement Units	μm, mm, mils, inch
Calibration	Zero Calibration and Multi-point Calibration
Statistics	Number of Readings, Max, Min, Mean, Sample Standard Deviation, Coefficient of Variation, Number Below Limit, Number Above Limit
Chart Display	Curve, Bar Chart or Trend Chart
Data Storage	10 × 13 × 10 Measurement Data
Maximum Measuring Rate	2 Readings/s
Display	2.4 inch Colour Screen
Bluetooth & APP	Supported
Operating Environment	Temperature: -10°C to +50°C; Humidity: 20–90% RH (Non-condensation)
Storage Environment	Temperature: -20°C to +60°C; Humidity: 20–90% RH (Non-condensation)
Power Supply	2 × 1.5 V AA Alkaline Batteries or 2 × 1.2 V AA Rechargeable Batteries
Standards	CE, ROHS, ISO 2178, ISO 2360, GB/T 4956-2003, GB/T 4957-2003, JJG-818-2005
Protection Class	IP40
Dimensions	146 × 76 × 32 mm
Material	ABS
Weight	About 137 g (Without Battery)
