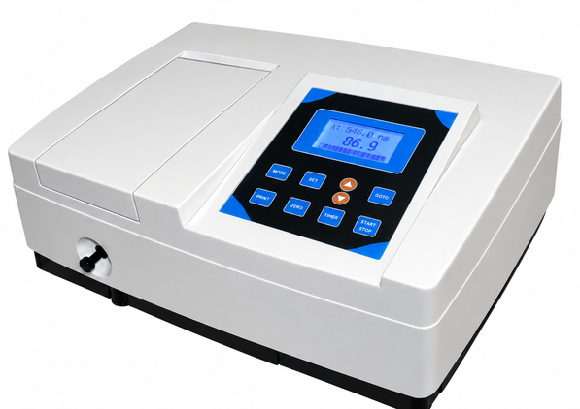

Advanced Single Beam Microprocessor UV-VIS Spectrophotometer LWSP-S1002
Model LWSP-S1002
In Stock
LABWAN Advanced Single Beam Microprocessor UV-VIS Spectrophotometer with Scanning Software, designed for reliable continuous laboratory operation. It supports transmittance, absorbance, standard curve, and coefficient measurement functions, with USB and printer connectivity.
Get Quote
Catalog Not Available
ISO 9001 Certified
Service & Support
Key Features
- Large 128 × 64 dots LCD display.
- Stores and displays 50 groups of data.
- Data can be restored after a sudden power cut.
- Auto wavelength setting.
- Tungsten and deuterium lamps can be switched on/off individually.
- Automatic wavelength calibration and dark current getting with scanning.
- T Mode for continuous transmittance measurement.
- A Mode for continuous absorbance measurement.
- C Mode supports standard curves using up to 9 standard samples.
- F Mode provides coefficient-method measurement.
Specifications
| Parameter | Specification |
|---|---|
| Product Name | Advanced Single Beam Microprocessor UV-VIS Spectrophotometer |
| Model Number | LWSP-S1002 |
| Optical System | Single - Beam, Grating |
| Wavelength Range | 190 - 1000nm |
| Bandwidth | 2nm |
| Wavelength Accuracy | ±1nm |
| Wavelength Repeatability | 0.5nm |
| Wavelength Setting | Auto |
| Photometric Accuracy | ±0.5%T |
| Photometric Repeatability | 0.3%T |
| Photometric Range | -0.3-3A, 0-200%T |
| Stray Light | <0.3%T |
| Stability | ±0.002A/h @500nm |
| Display | 128 * 64 Dots LCD |
| Detector | Silicon Photodiode |
| Standard Cell Holder | 4-position 10mm cell changer |
| Light Source | Tungsten & Deuterium lamp |
| Output | USB port & Parallel port (printer) |
| Power Requirements | AC 85 ~ 250V |
| Dimension | 420x280x180mm |
| Weight | 20Kg |
